Components And Components Location: Components

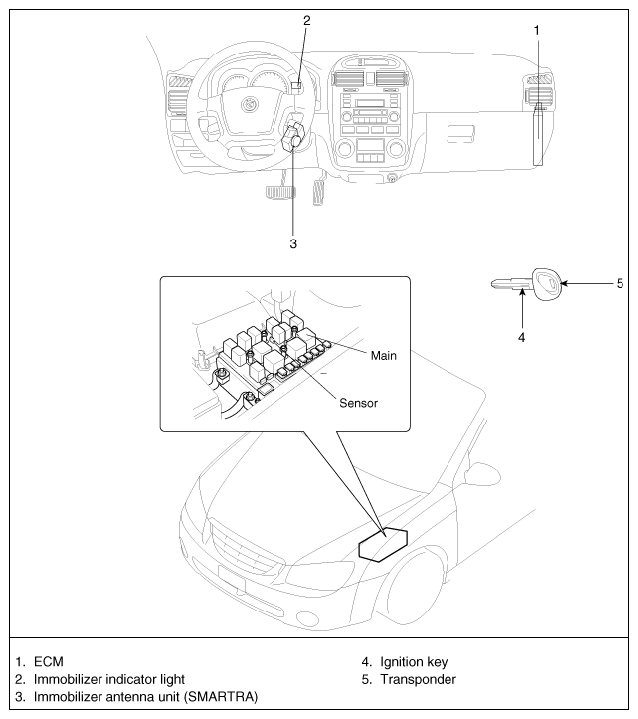

Fig 1: Identifying ECM, Immobilizer Indicator Light, Ignition Key And Transponder
G06401127Courtesy of KIA MOTORS AMERICA, INC.
