Anti-Lock Braking System Control Module: Removal

1. Disconnect the double lock connector (A) from the HECU.

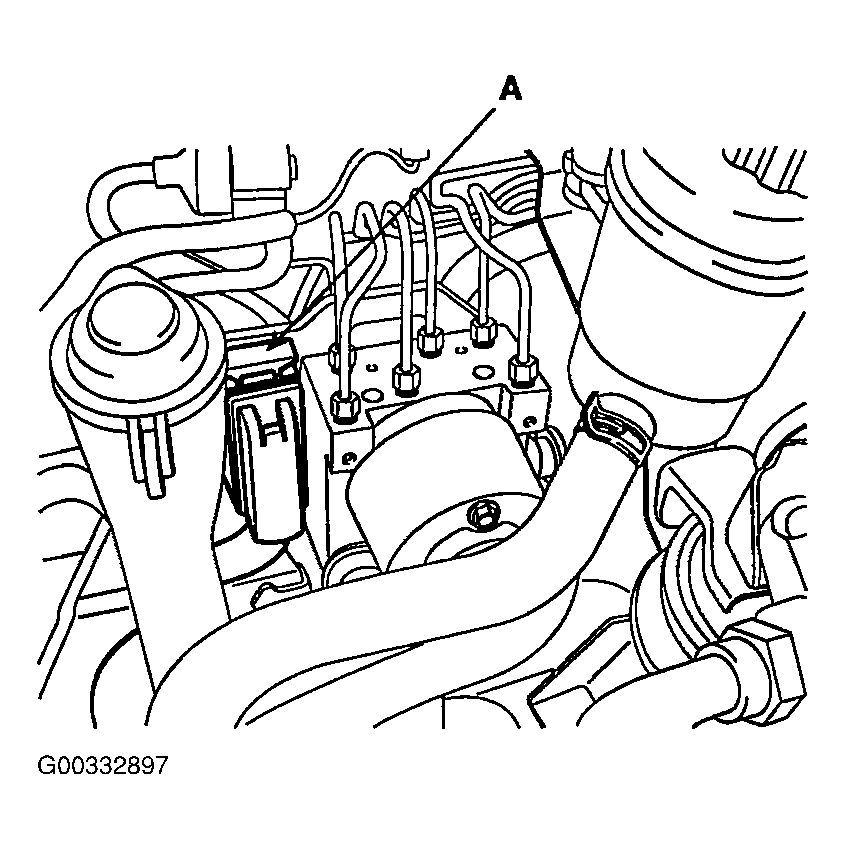

   Fig 1: Disconnecting HECU Connector

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the brake tubes (A) from the HECU.

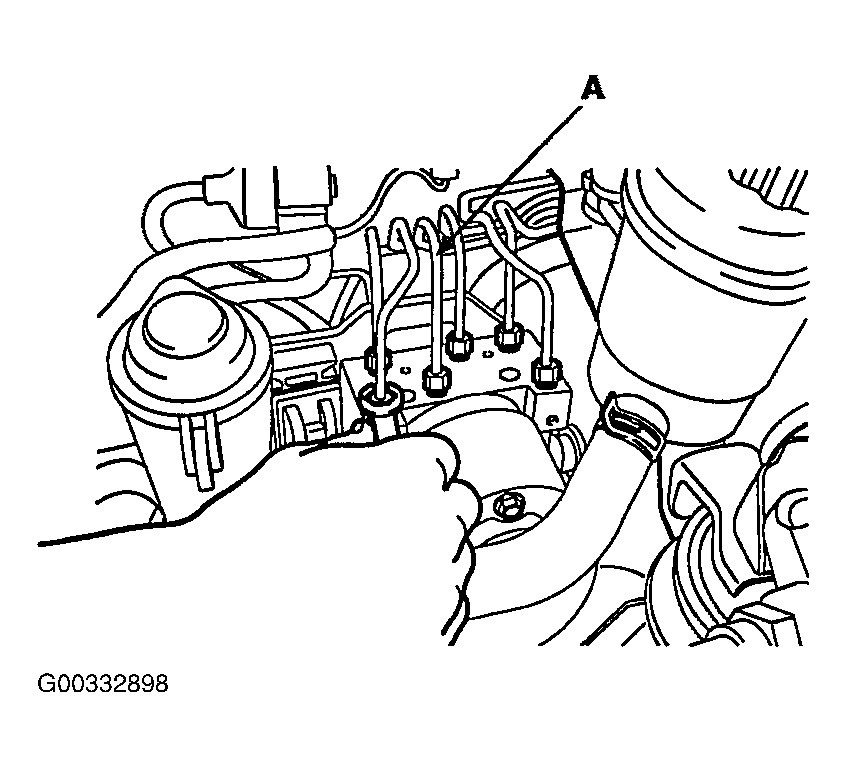

   Fig 2: Disconnecting HECU Brake Tubes

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
   • Take care not to damage or deform the brake lines during removal and installation.
   • To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.
3. Remove the HECU bracket mounting bolt and remove the HECU.

CAUTION:

• Never attempt to disassemble the HECU.
• The HECU must be transported and stored in an upright position and with the ports sealed. The HECU must not be drained.

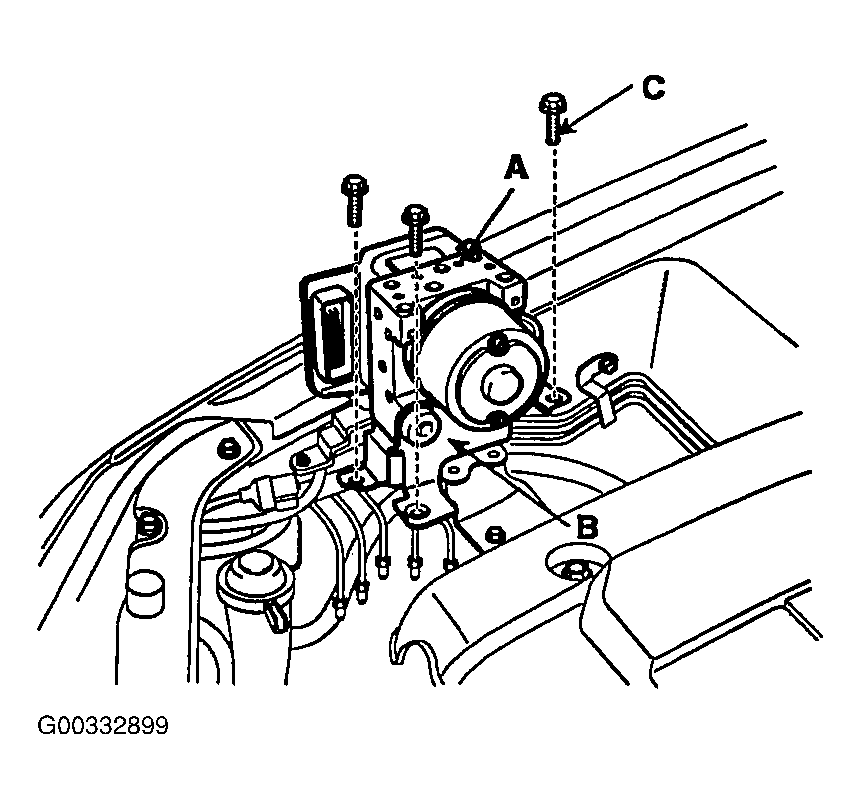

Fig 3: Removing HECU Assembly

Courtesy of KIA MOTORS AMERICA, INC.
