Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the center console.

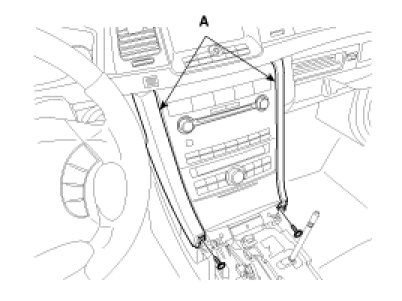

3. Remove the crash pad center lower garnish (A).

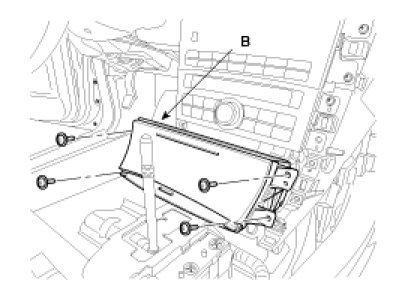

4. Remove the center facia tray (B) after loosening 4 screws.

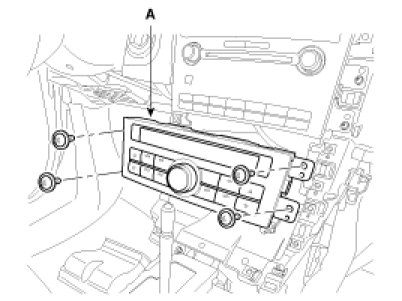

5. Remove the Heater & A/C controller (A) after loosening 4 screws.

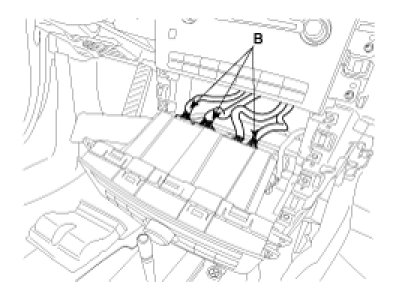

6. Disconnect the connector(B), and then remove the A/C controller.




7. Installation is the reverse order of removal.
