Intake Manifold

Intake Manifold
Tightening torque
1st : 3.9 - 5.9 Nm (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
2st : 18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 lb-ft)
3st : Repeat 2nd step twice or move.

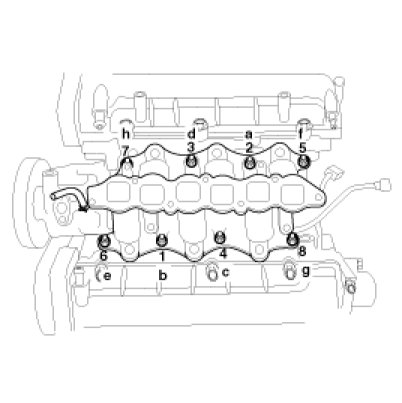

NOTE:
Be careful of the installation direction.
a - h : 1st step order
1 - 8 : 2nd step order
