HECU (Hydraulic And Electronic Control Unit)

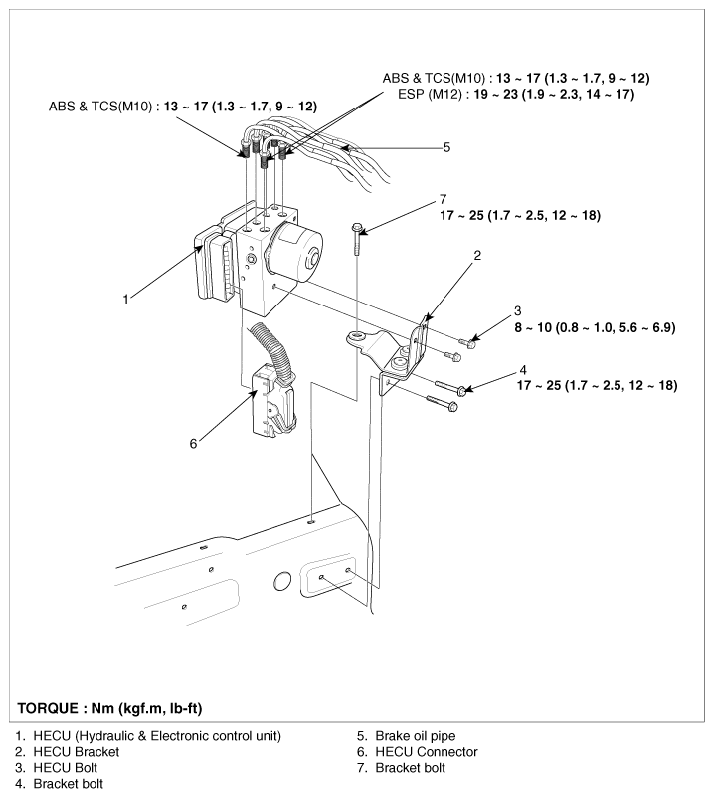

Fig 1: ABS Control Unit Components With Torque Specification
G06406770Courtesy of KIA MOTORS AMERICA, INC.
