Component Tests and General Diagnostics





Inspection

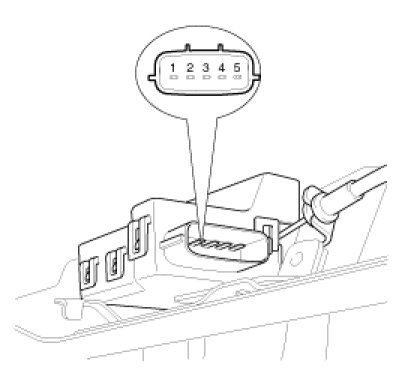

Tailgate Switch

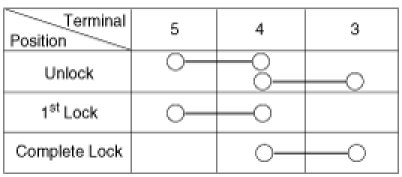

1. Check for continuity between the tailgate latch terminals.




2. If continuity is not specified, inspect the switch
