Memory Positioning Switch: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel.

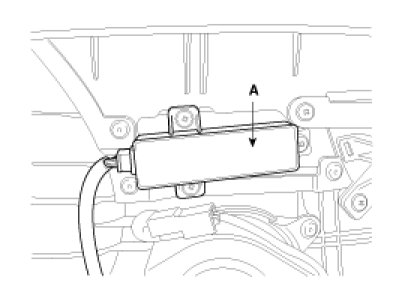

3. After removing the mounting screws (3EA) and switch connector, then remove the IMS control switch (A) from the front door trim panel.






Installation

1. Connect the connectors and reassemble the IMS control switch.
2. Reassemble the front door panel.
