Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the rear console panel(A).

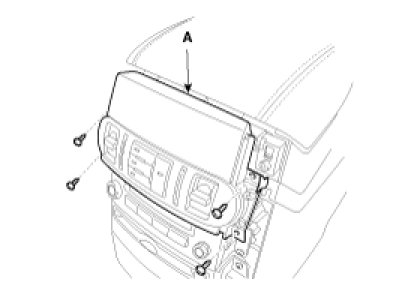

3. Loosen the mount screw and then remove the rear heater control unit(A).




4. Installation is the reverse order of removal.
