Engine Control Module: Service and Repair

Removal

NOTE:
In the case of the vehicle equipped with immobilizer, perform "Key Teaching" procedure together .

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

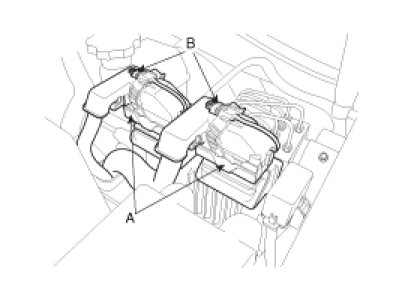

2. Disconnect the ECM connector (A) after removing the connector fixing clip (B).

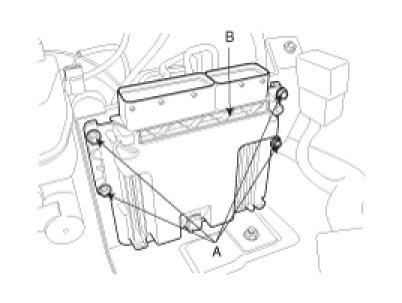

3. After removing the installation bolts (A), remove the ECM (B) from the bracket.






Installation

NOTE:
In the case of the vehicle equipped with immobilizer, perform "Key Teaching" procedure together .

1. Installation is reverse of removal.

ECM installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lbf.ft)
