Engine Control Module





ECM Terminal And Input/Output signal

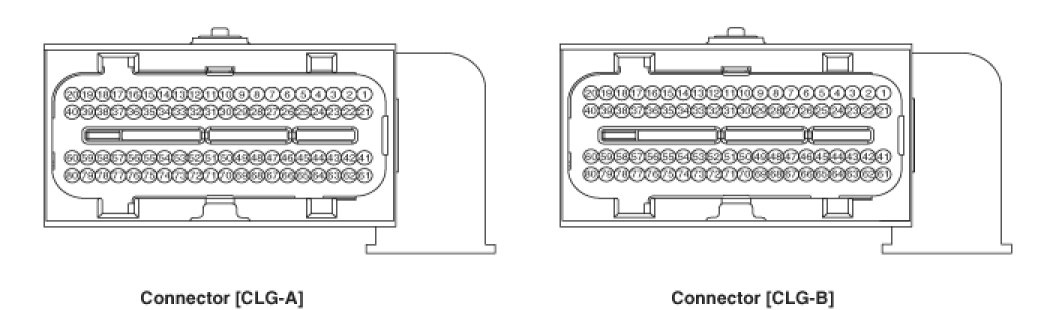

ECM Harness Connector

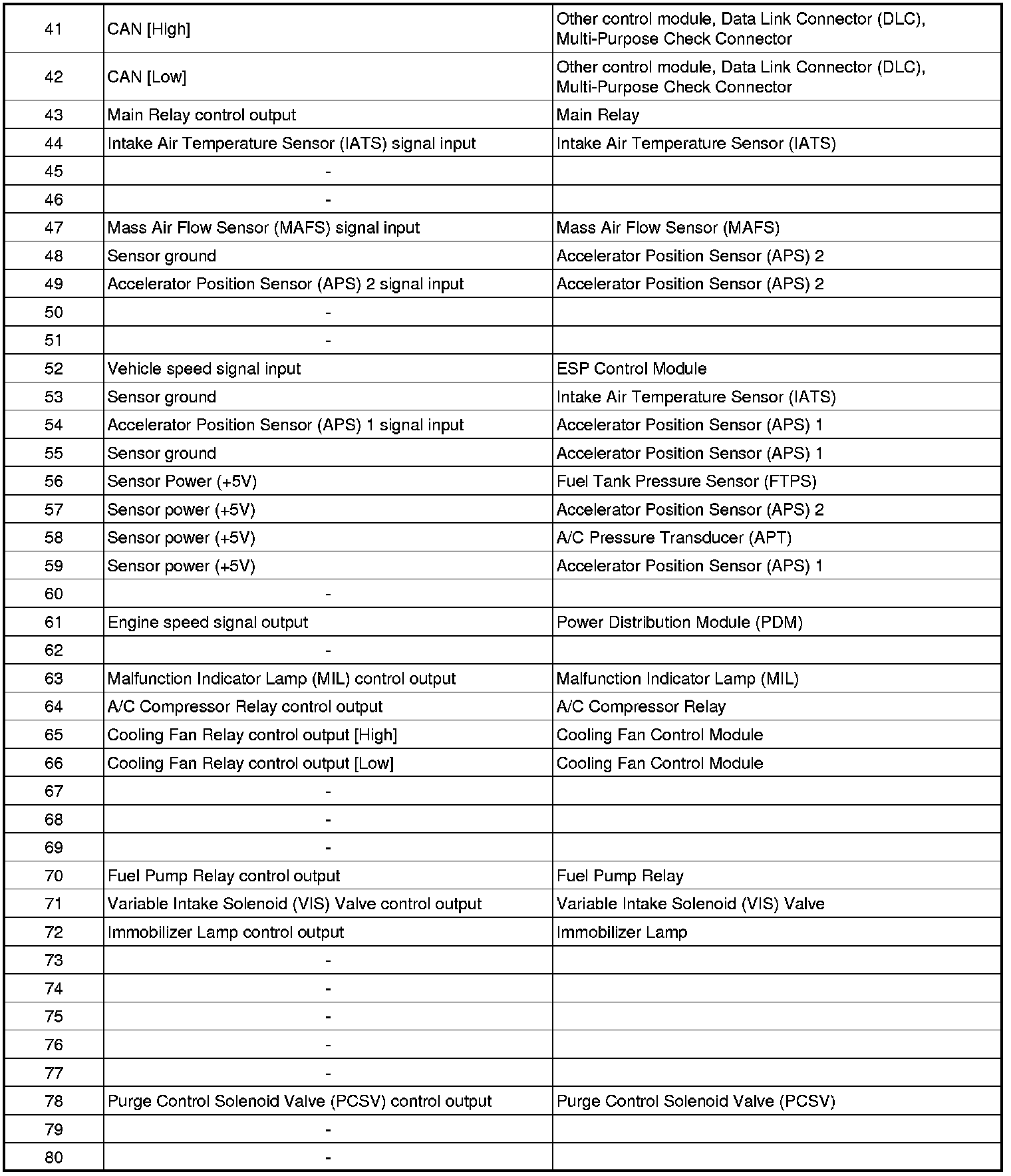

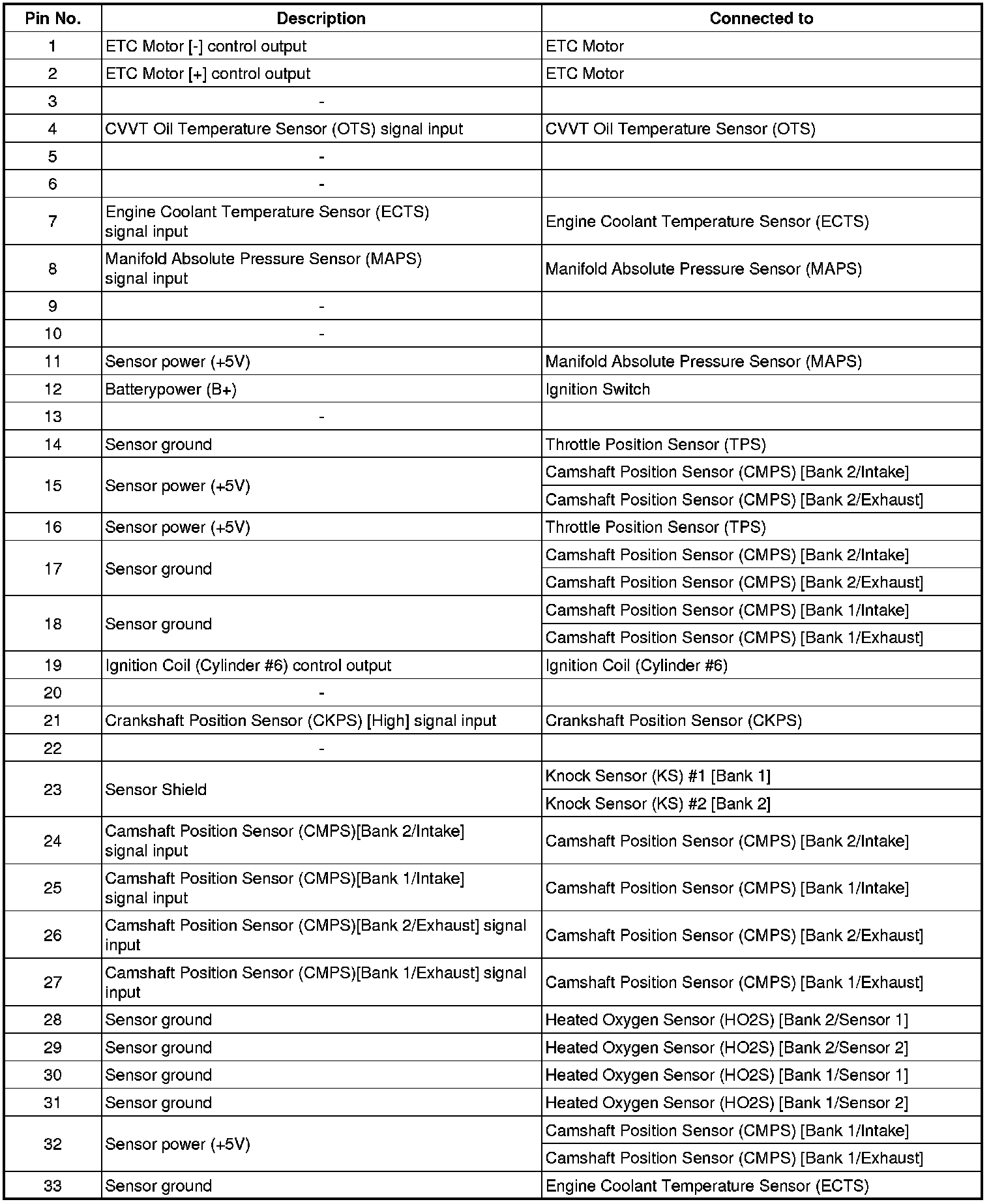

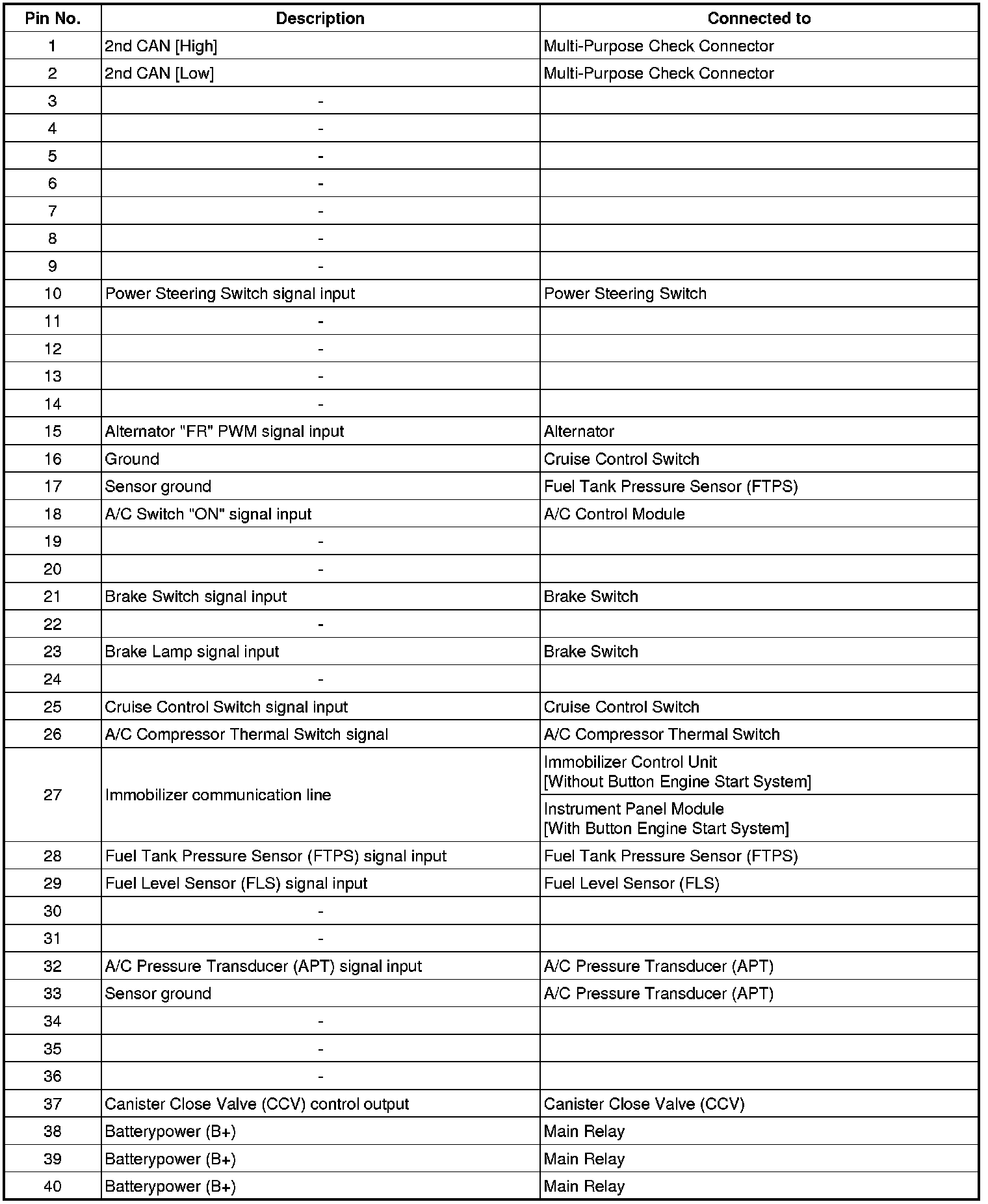

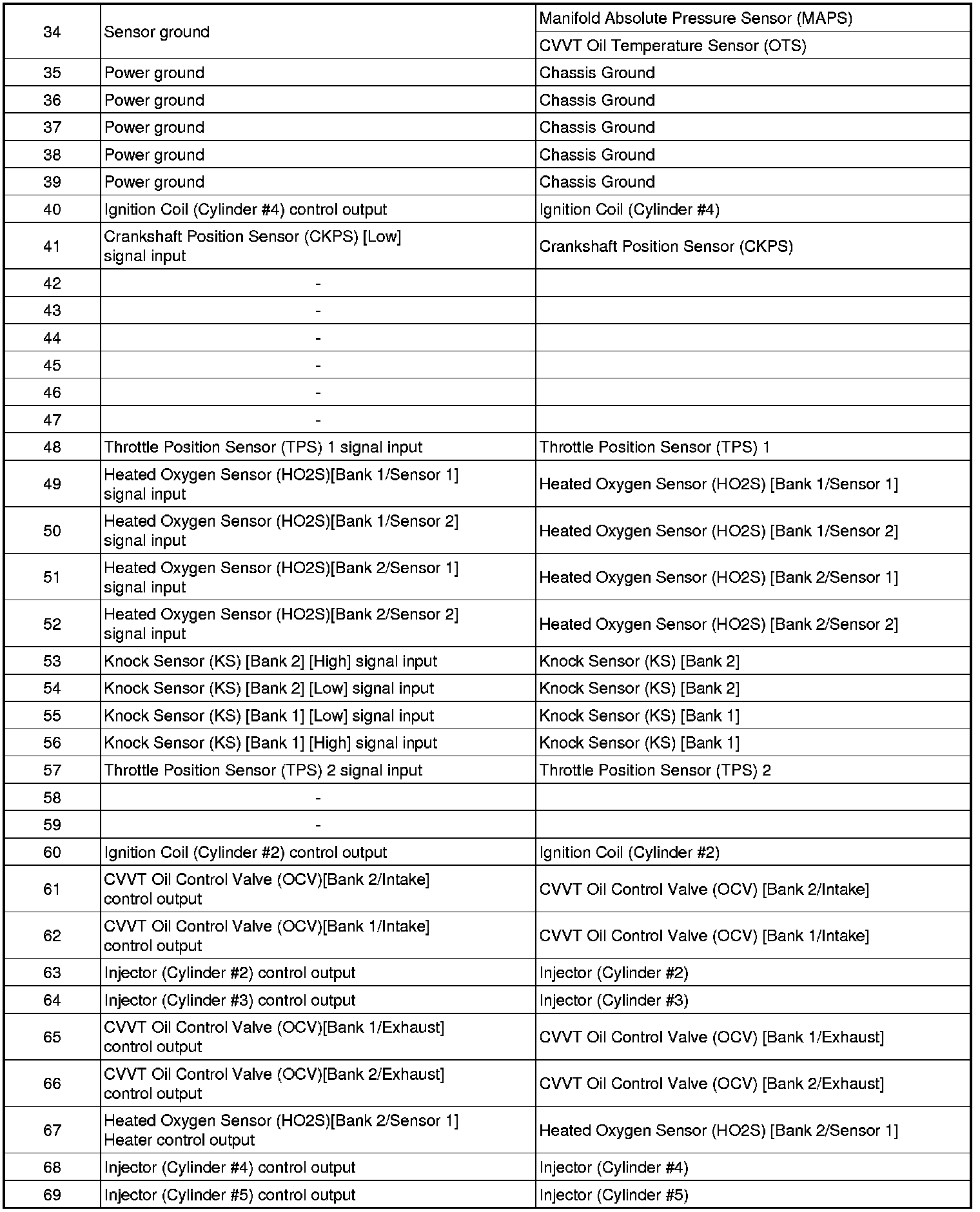

ECM Terminal Function
Connector [CLG-A]









Connector [CLG-B]

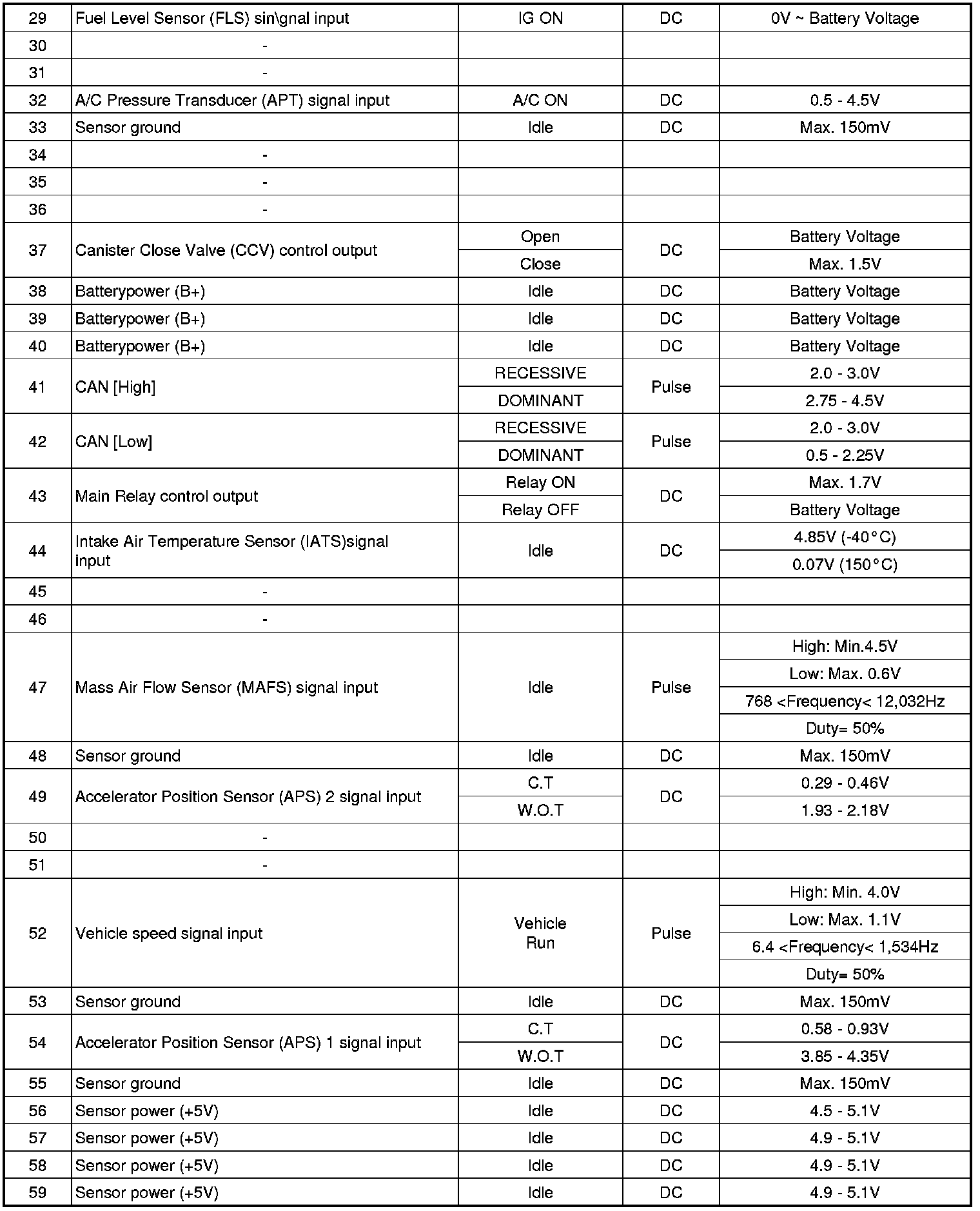

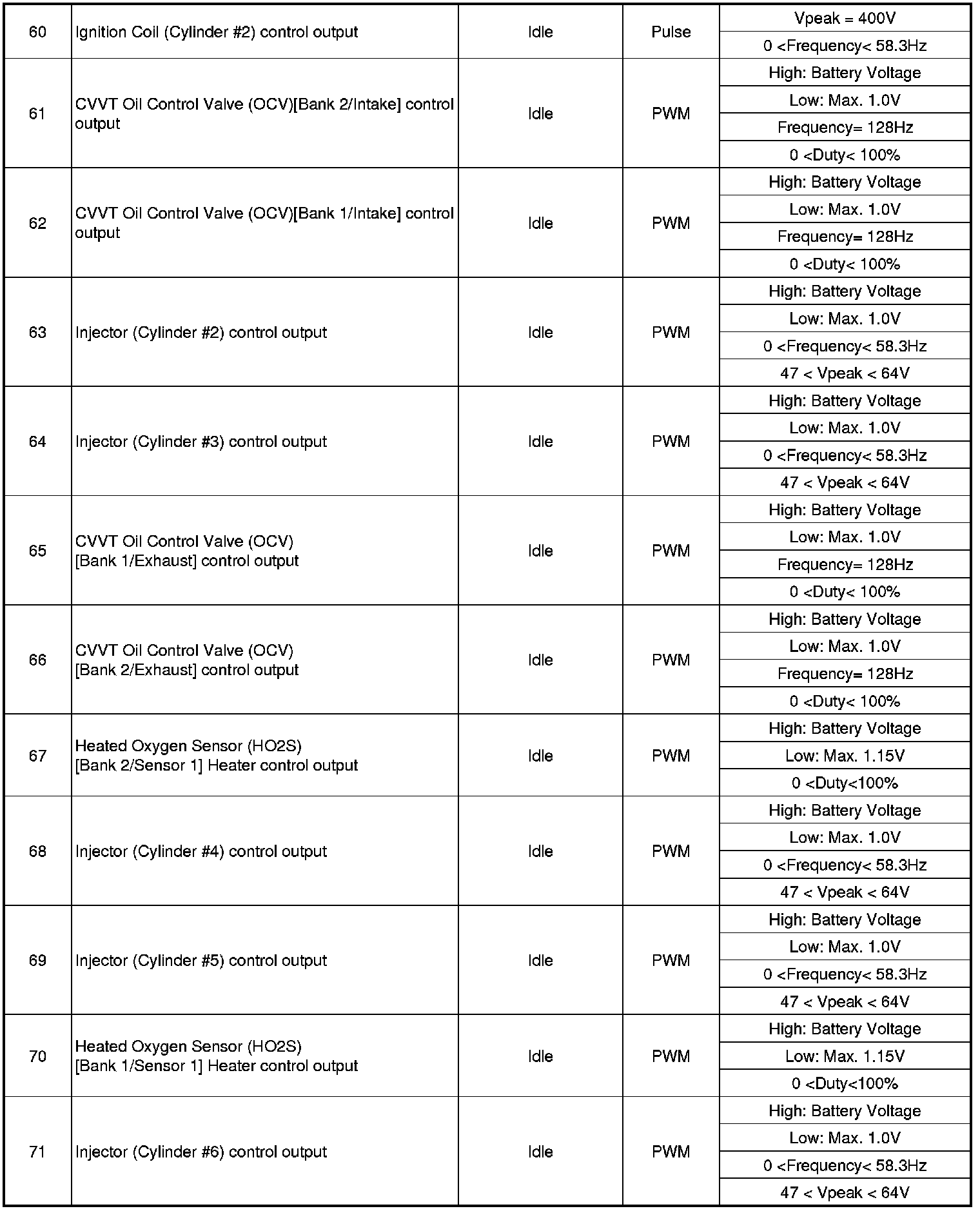

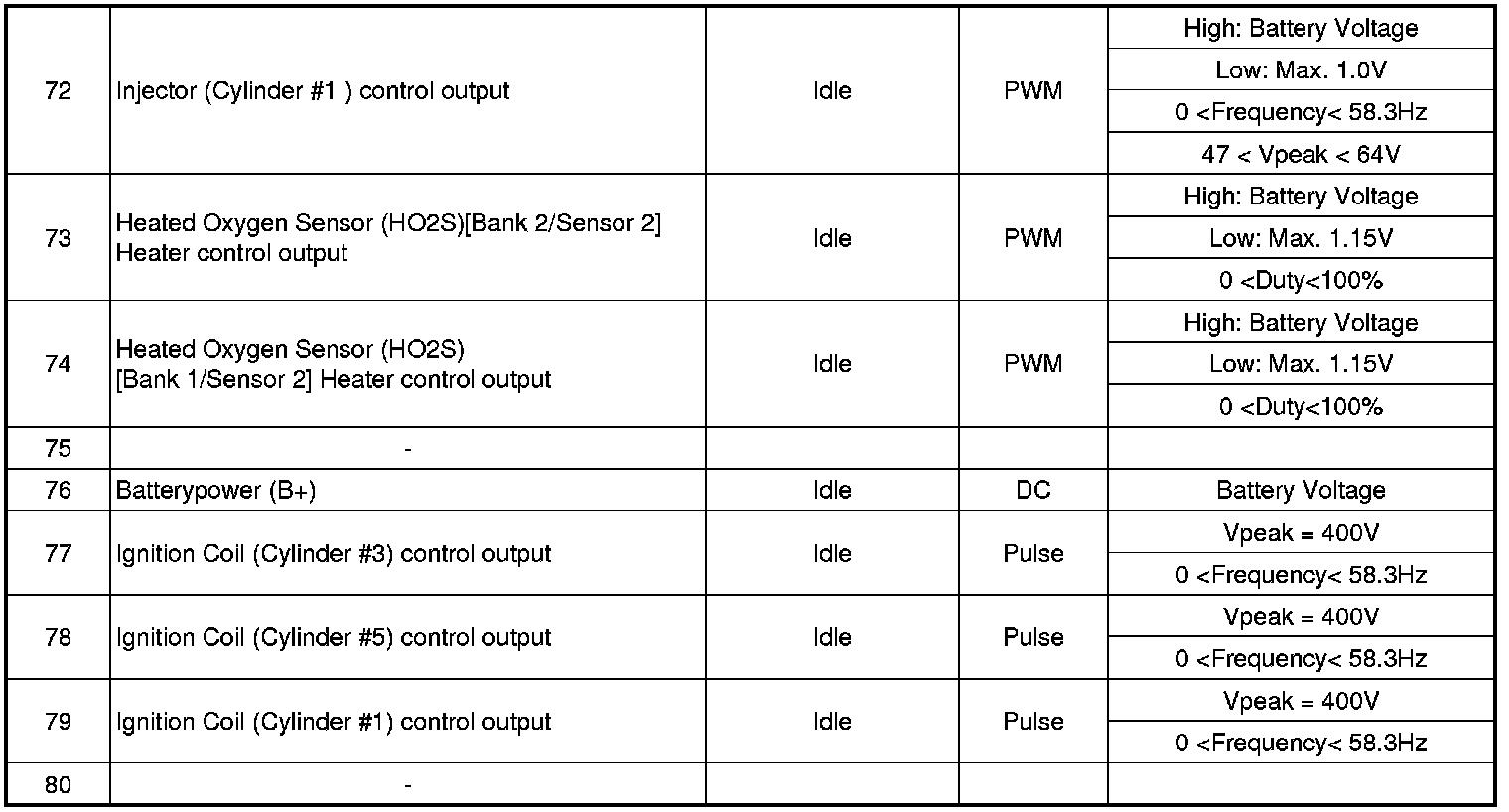

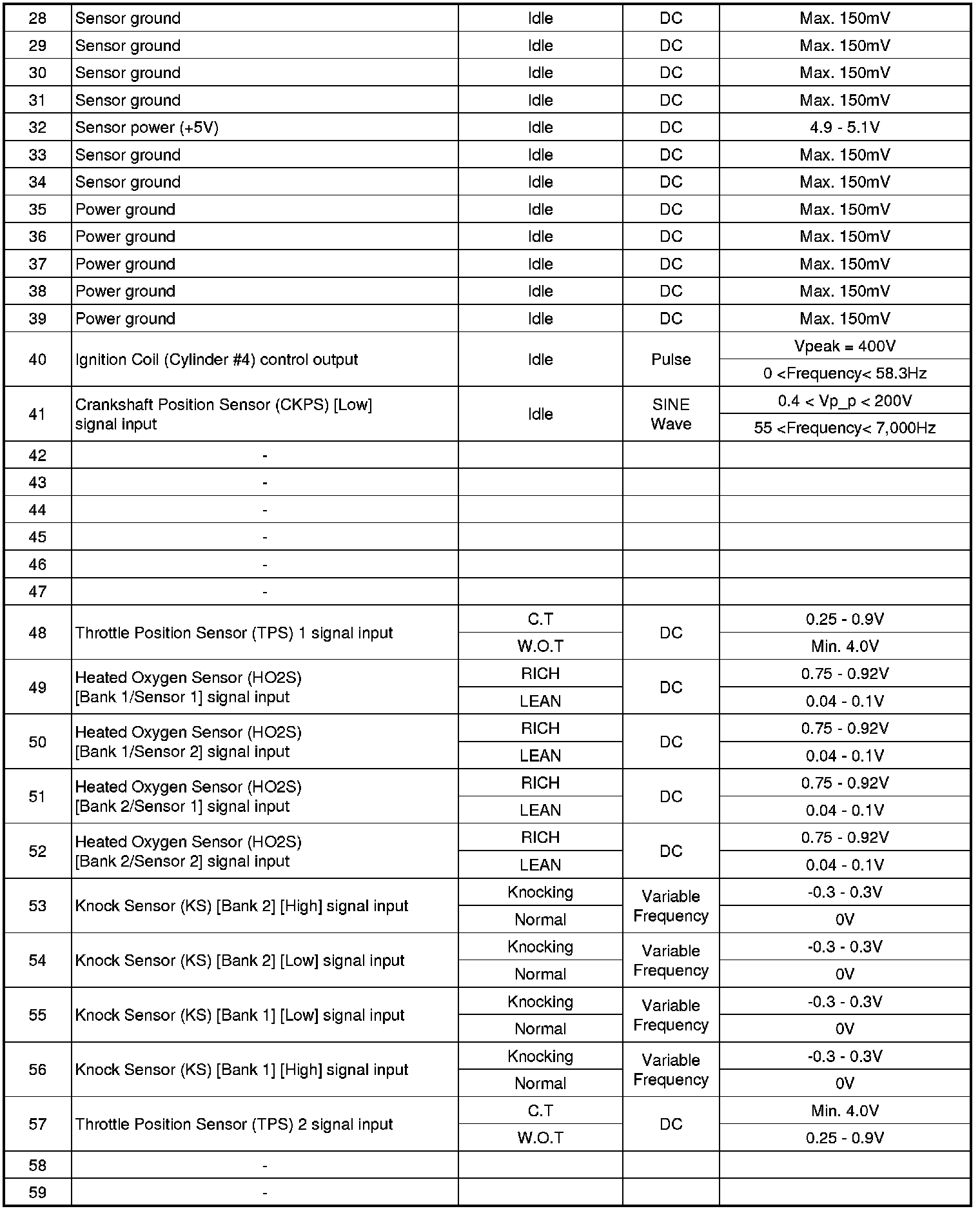

ECM Terminal Input/Output Signal

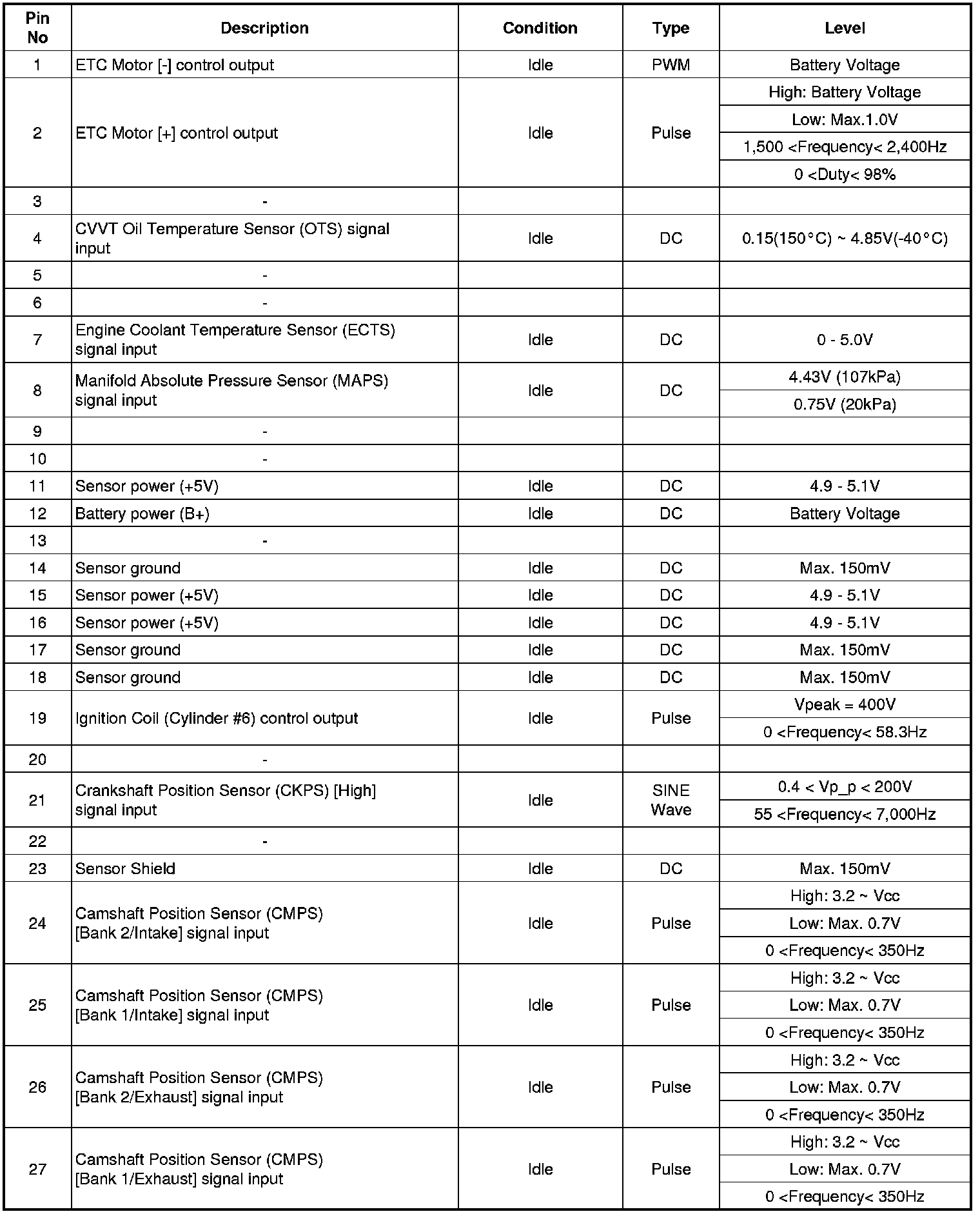

Connector [CLG-A]

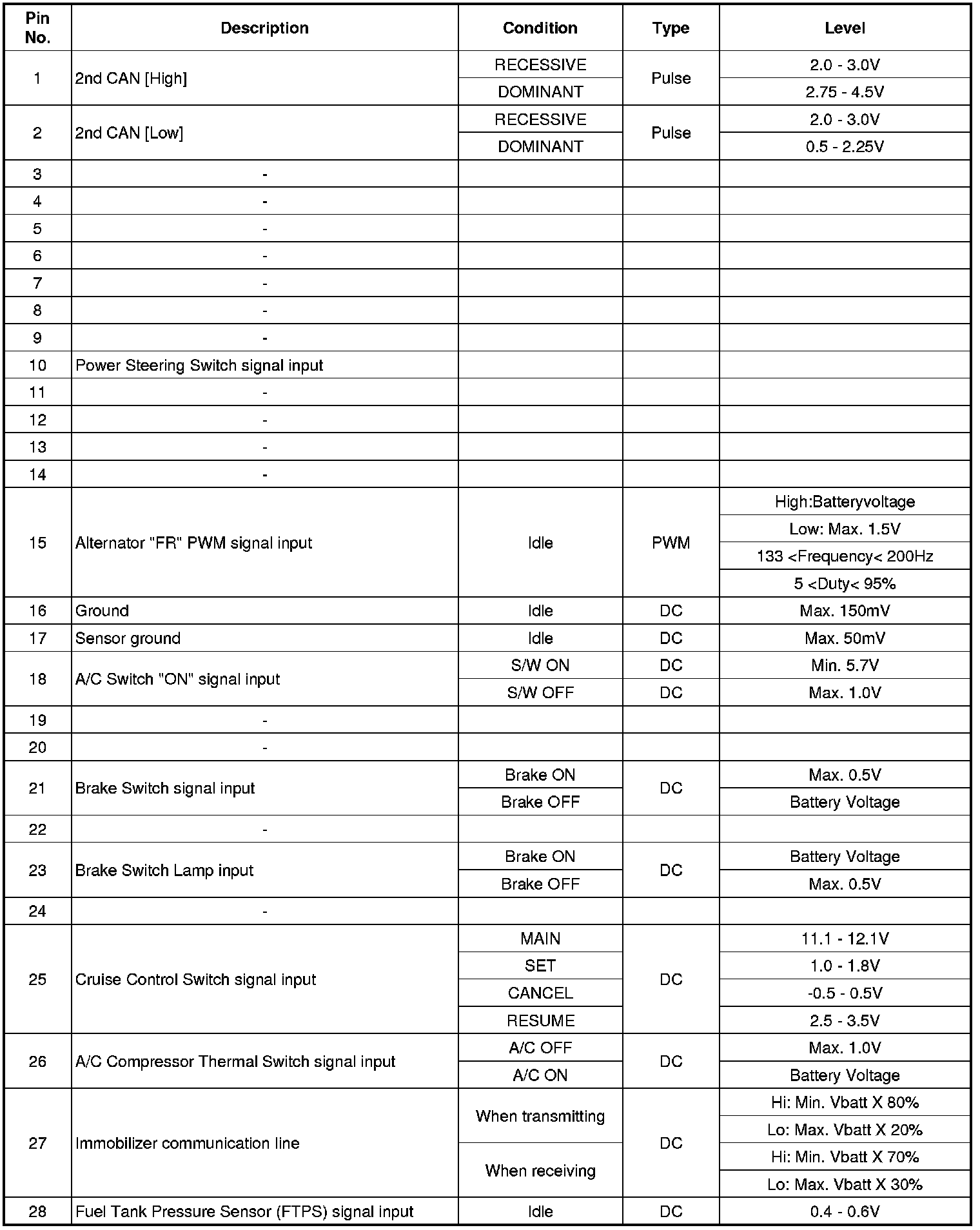

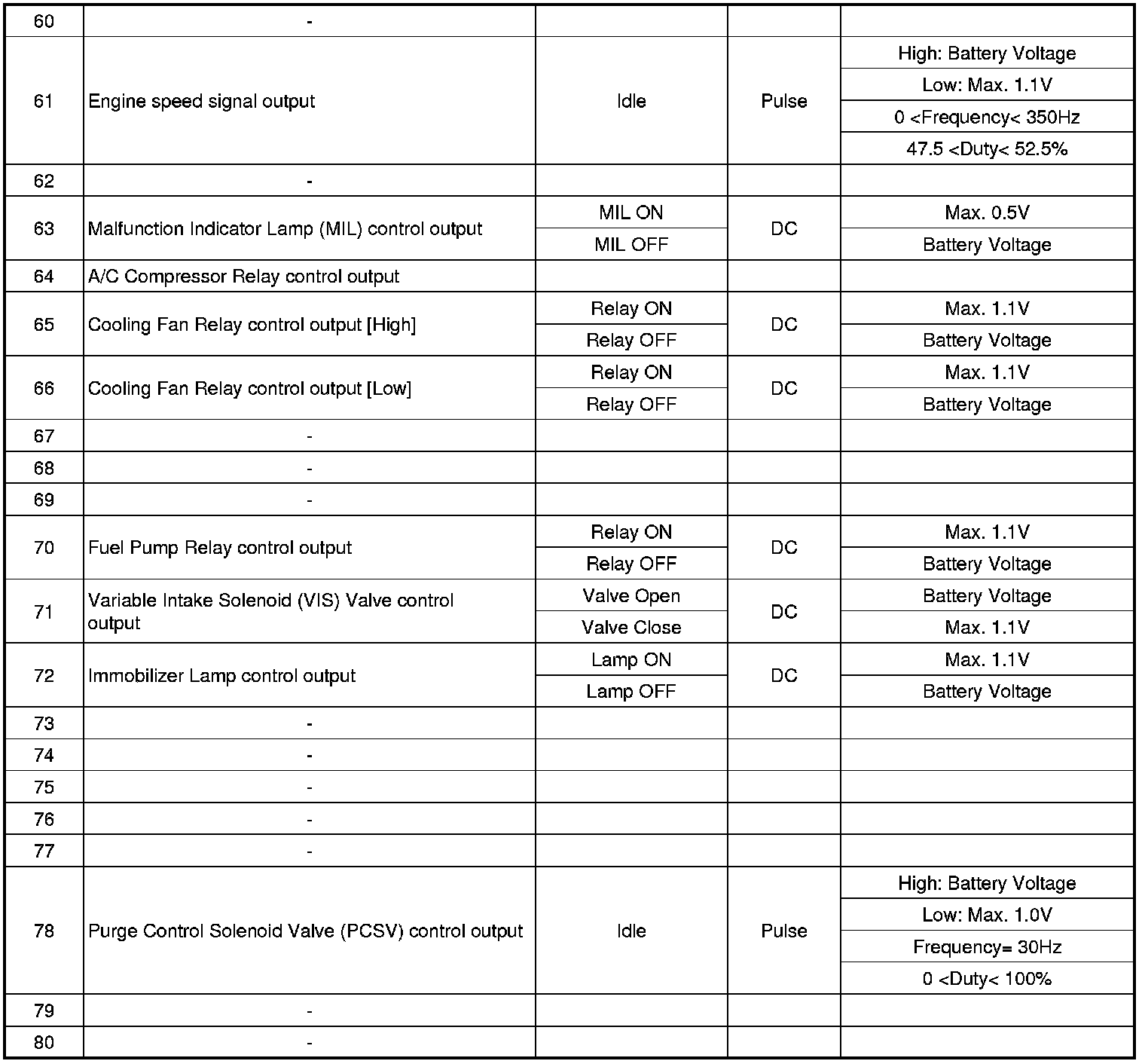

Connector [CLG-B]
