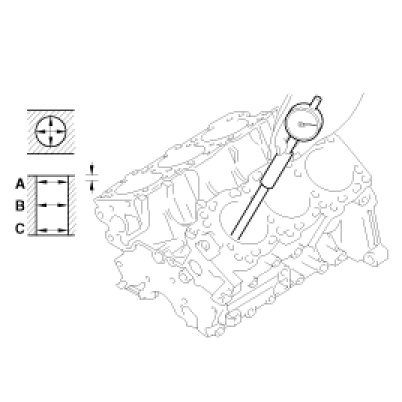

Cylinder Bore

Cylinder Bore

Standard diameter 96.00 - 96.03 mm (3.7795 - 3.7807 in.)

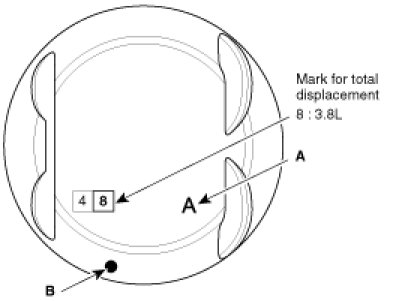

7. Check the piston size code(A) and the front mark(B) on the piston top face.









Clearance 0.03 - 0.05 mm (0.0012 - 0.0020 in.)
Piston-to-cylinder clearance 0.03 - 0.05 mm (0.0012 - 0.0020 in.)
