Main Bearing Cap

Main Bearing Cap

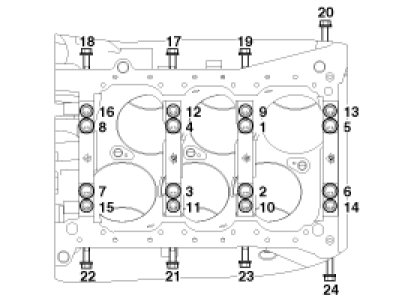

Tightening torque
Main bearing cap bolt 49.0 N.m (5.0 kgf.m, 36.2 lb-ft) + 90 ° (1 - 8)
19.6 N.m (2.0 kgf.m, 14.5 lb-ft) + 120 ° (9 - 16)
29.4 - 31.4 N.m (3.0 - 3.2 kgf.m, 21.7 - 23.1 lb-ft) (17 - 24)

NOTE:
Always use new main bearing cap bolts.
If any of the bearing cap bolts are broken or deformed, replace it.
