Cylinder Head





Cylinder Head

Using SST(09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque :
Cylinder head bolts (1 - 10) 32.4 - 36.3 N.m (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft) + 88 ° ~ 92 ° + 118 ° ~ 122 °
Flange bolts (11 - 12) 32.4 - 36.3 N.m (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft)

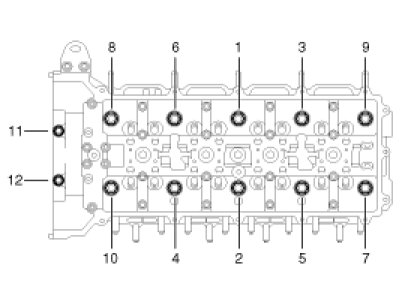

[RH]

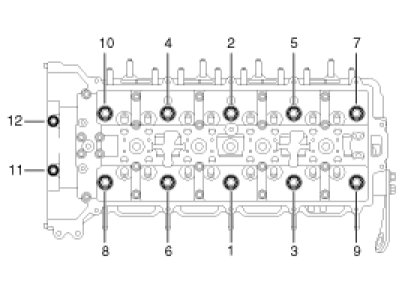

[LH]
