Components And Component Locations: Component

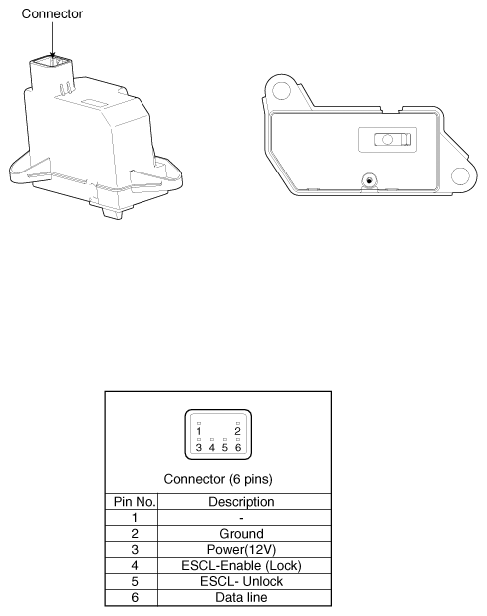

Fig 1: Identifying Electronic Steering Column Lock, Connector, & Terminals
G06365597Courtesy of KIA MOTORS AMERICA, INC.
