Service Data Analysis

IG "OFF" and connect GDS.
IG "ON" and select "Current Data" menu.
Check the service data of ESCL BATT.
Specification: ON

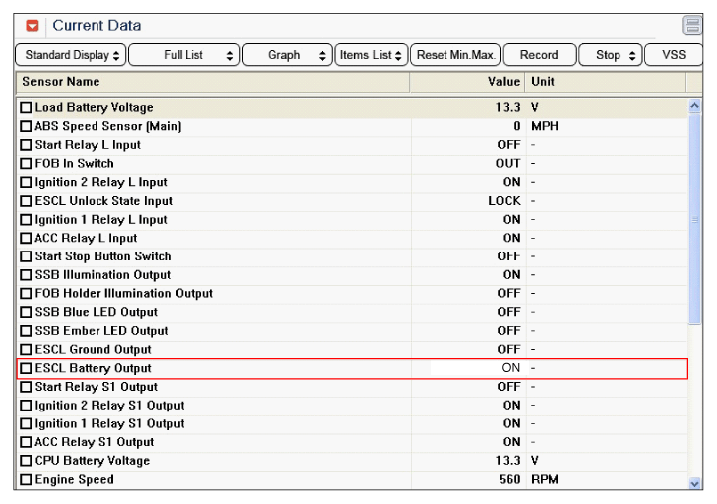

Fig 1: Checking Service Data Of ESCL Battery Output
Courtesy of KIA MOTORS AMERICA, INC.
Is the service data within specifications?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next procedure.
