PDM Diagnosis With Scan Tool

1. It will be able to diagnose defects of Smart key with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and "Smart key system (SMK)" menu if you want to check PDM.
   Fig 1: Scan Tool Screen Display - Selecting Smart Key System

   Courtesy of KIA MOTORS AMERICA, INC.
3. Select "PDM" in the menu.
   Fig 2: Scan Tool Screen Display - Selecting PDM Diagnostic Mode

   Courtesy of KIA MOTORS AMERICA, INC.
4. Select "Current data", if you want to check current data of PDM. It provides the input/output status of each module.

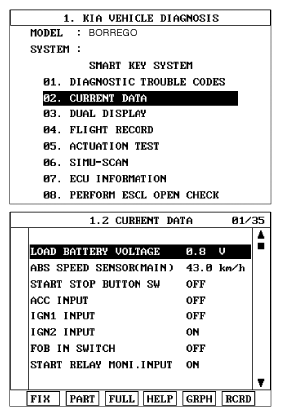

   Fig 3: Scan Tool Screen Display - Selecting Current Data

   Courtesy of KIA MOTORS AMERICA, INC.
5. If you want to check PDM data operation forcefully, select "Actuation test".
   Fig 4: Scan Tool Screen Display - Selecting Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

DTC code list

Input/Output current data

Actuator List
