Borrego Limited, 4WD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Button Engine Start System
>>
PDM (Power Distribution Module)
>>
Schematic Diagrams
>>
System circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System circuit diagram

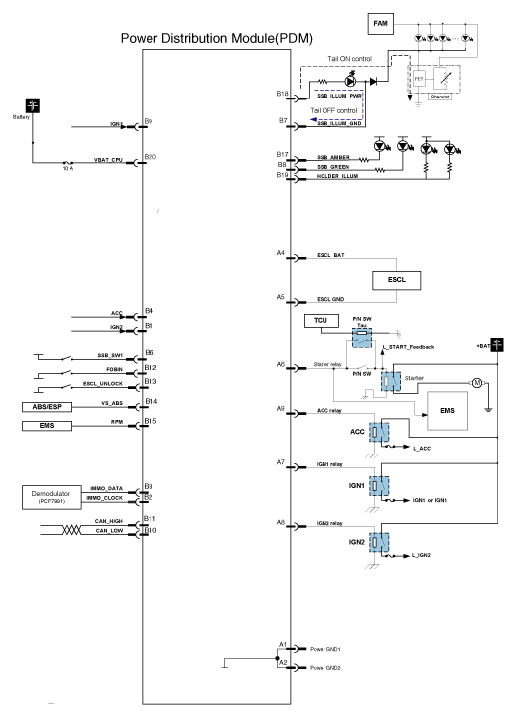

Fig 1: Power Distribution Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
