Diagnostic Circuit Diagram

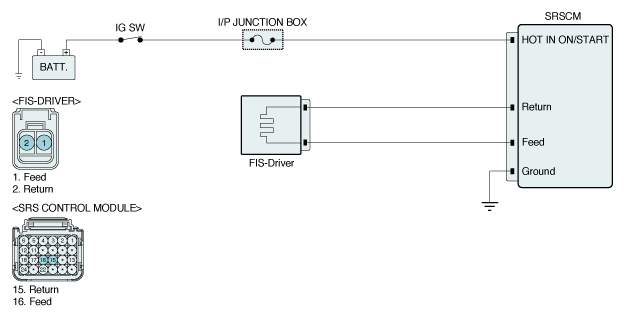

Fig 1: B1328 Diagnostic Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
