Kia
>>
2009
>>
Borrego Limited, 4WD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Control Module (SRSCM)
>>
B1745 P-SIS Front-Passenger Defect
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

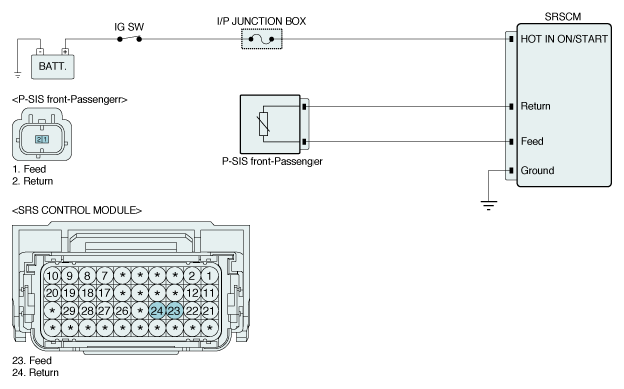

Fig 1: B1745 Diagnostic Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
