Diagnostic Circuit Diagram

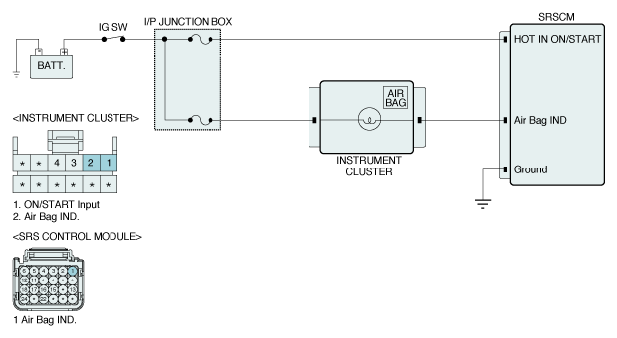

Fig 1: B2500 Diagnostic Circuit Diagram
G06368322Courtesy of KIA MOTORS AMERICA, INC.
