Kia
>>
2009
>>
Borrego Limited, 4WD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Control Module (SRSCM)
>>
Schematic Diagrams
>>
Circuit Diagram (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram (1)

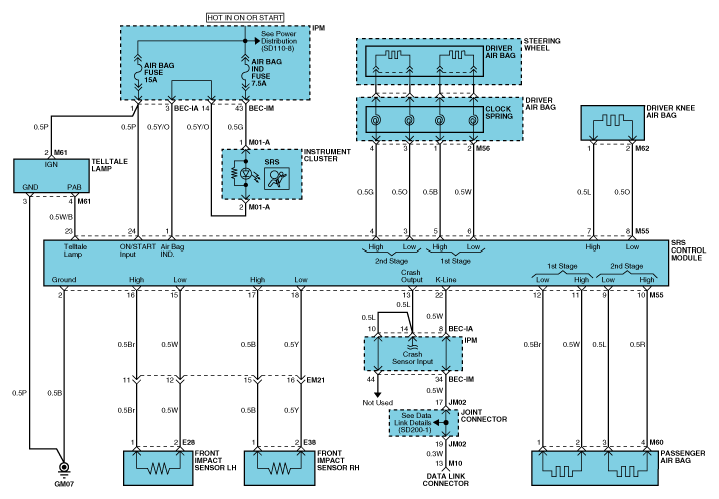

Fig 1: SRS Control Module Circuit Diagram (1)
Courtesy of KIA MOTORS AMERICA, INC.
