Alarm Module: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel (A).




3. Remove the steering column shaft .

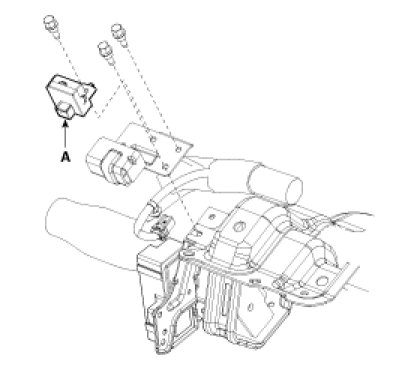

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the screw.




5. Installation is the reverse of removal procedure.
