Navigation System: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

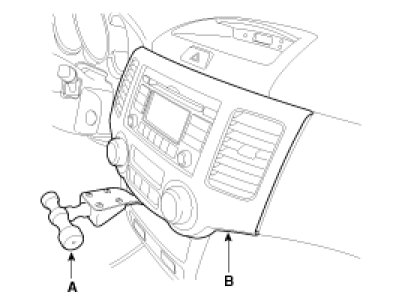

2. Remove the crash pad center facia panel(B) using the SST (A).

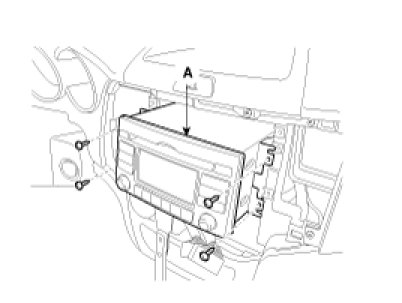

3. Remove the mounting screws (A) then remove the audio unit (B).

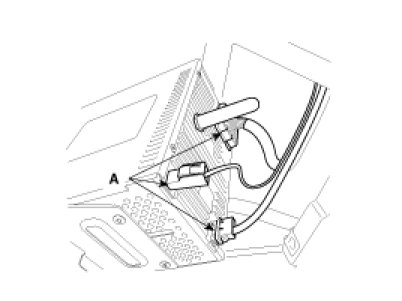

4. Remove the connectors(A).






Installation

1. Connect the audio unit connectors and cables.
2. Install the audio unit.
3. Install the crash pad center facia panel.
4. Check the audio system.
