Lateral Accelerometer: Service and Repair

Replacement

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Disconnect the yaw rate & lateral G sensor connector.

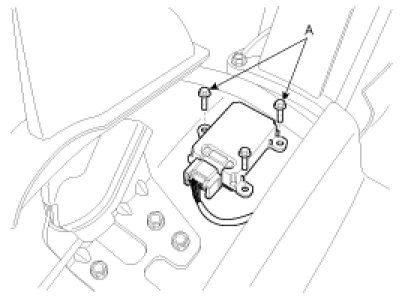

3. Remove the mounting bolts (A).

Tightening torque:
7.9 - 10.8 N.m (0.8 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)





4. Installation is the reverse of removal.
