Repair Procedures

REPLACEMENT

1. Remove the crash pad center lower cover.

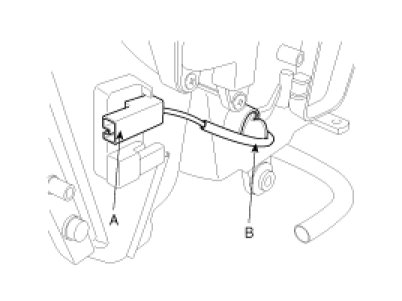

2. Remove the evaporator sensor connector(A).
3. Remove the evaporator temperature sensor(B), by pulling it after rotating 90° in a counterclockwise direction.




4. Installation is the reverse order of removal.
