Front Door Module Assembly

REPLACEMENT

FRONT DOOR MODULE ASSEMBLY REPLACEMENT
1. Remove the following parts.
A. Front door trim.
B. Glass.
C. Inside handle.
D. Rear channel.
E. Window motor.

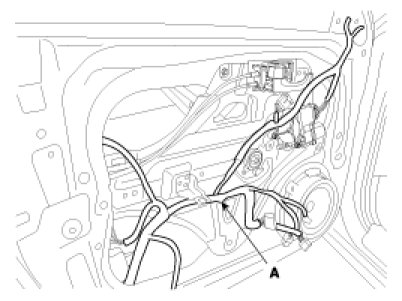

2. Disconnect the wiring harness (A).

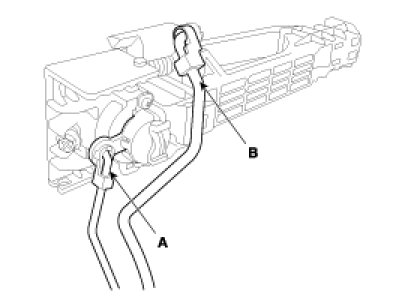

3. Disconnect the lock rod (A) and outside handle rod (B).

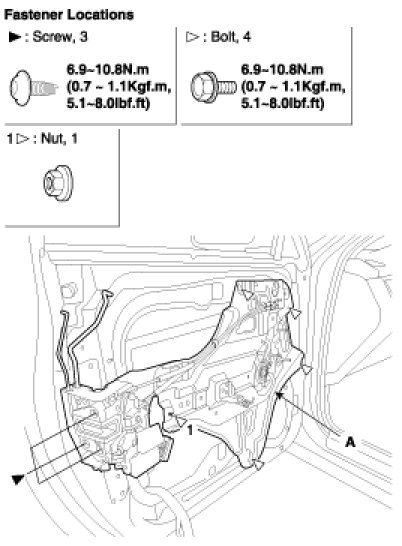

4. Loosen the door module mounting bolts, then remove the door module (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector are plugged in properly and each rod is connected securely.
- Make sure the door locks and opens properly.
