Rear Door Module Assembly

REPLACEMENT

MODULE ASSEMBLY REPLACEMENT
1. Remove the rear door trim.
2. Remove the glass.

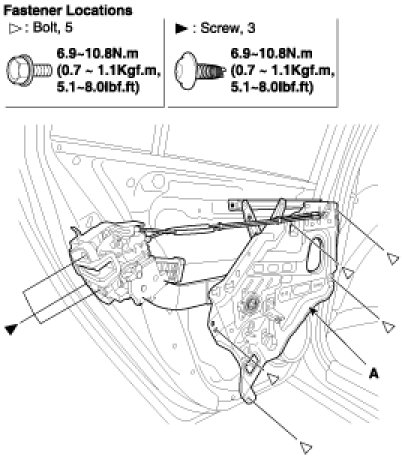

3. After loosening the door module mounting bolts, remove the door module (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door locks and opens properly.
