Windshield Washer Motor: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

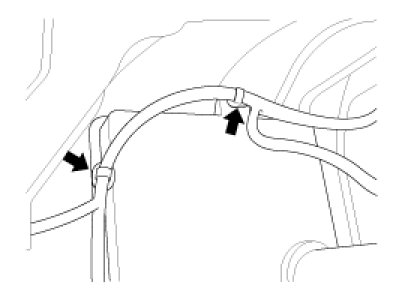

2. Remove the wire harness on the front washer reservoir.




3. Remove the tires.
4. Remove the wheel guide.
5. Remove the washer hose and the washer motor connector.

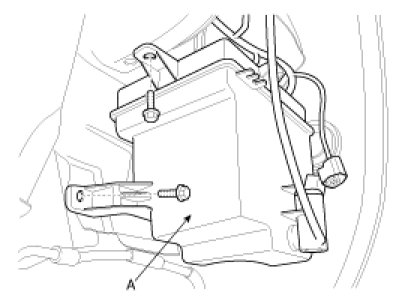

6. Remove the washer reservoir (A) after removing 2 bolts.






Installation

1. Install the washer reservoir.
2. Install the washer hose and washer motor connector.
3. Install the wheel guide and tires.
4. Install the wire harness on the front washer reservoir.
