Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the grove box.

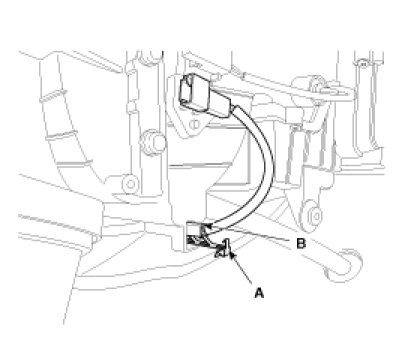

3. Pull the water temperature sensor(B) out at the heater unit with the clamp (A).




4. Installation is the reverse order of removal.

NOTE:
Do not hamage the sensor wiring during installation.
