Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.

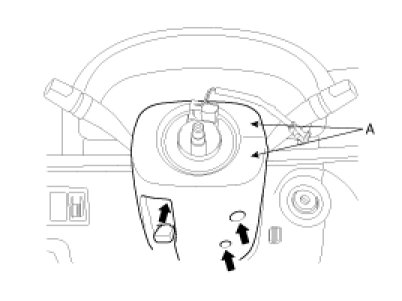

2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

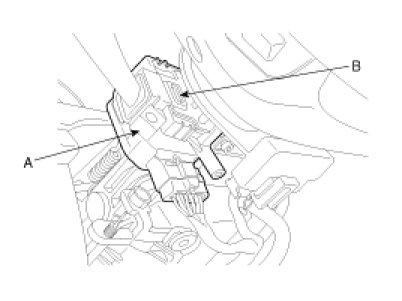

3. Remove the light switch (A) by pushing the lock pin (B) after disconnecting the connector.

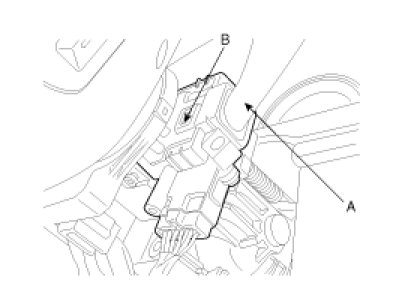

4. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.






Installation

1. Install the wiper switch
2. Install the light switch
3. Install the steering column upper and lower shrouds
