Fuel System - Specifications





Specifications

Sensors

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type

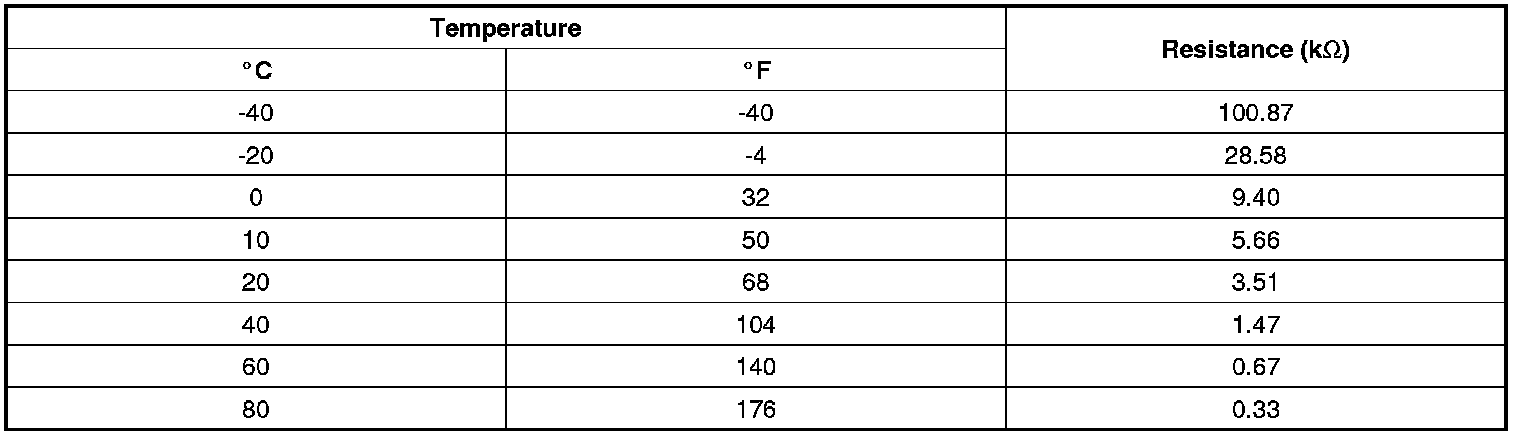

- Specification
