Power Circuit Inspection

Key "OFF".
Disconnect ISCA connector.
Key "ON".
Measure the voltage between terminal 2 of ISCA harness connector and chassis ground.
Specification: B+

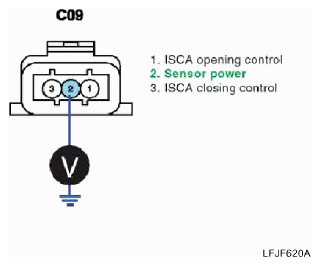

Fig 1: Measuring Voltage Between Terminal 2 Of ISCA Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
- Repair Open or Short in power circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
