Audio System: Troubleshooting: Notes

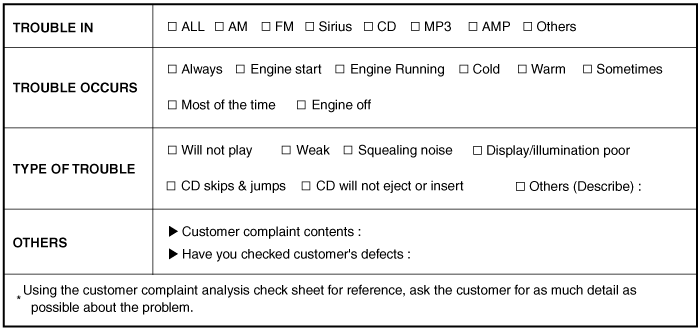

Fig 1: Customer Complaint Analysis Check Sheet
G00488467Courtesy of KIA MOTORS AMERICA, INC.

There are six areas where a problem can occur: wiring harness, the radio, the cassette tape deck, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

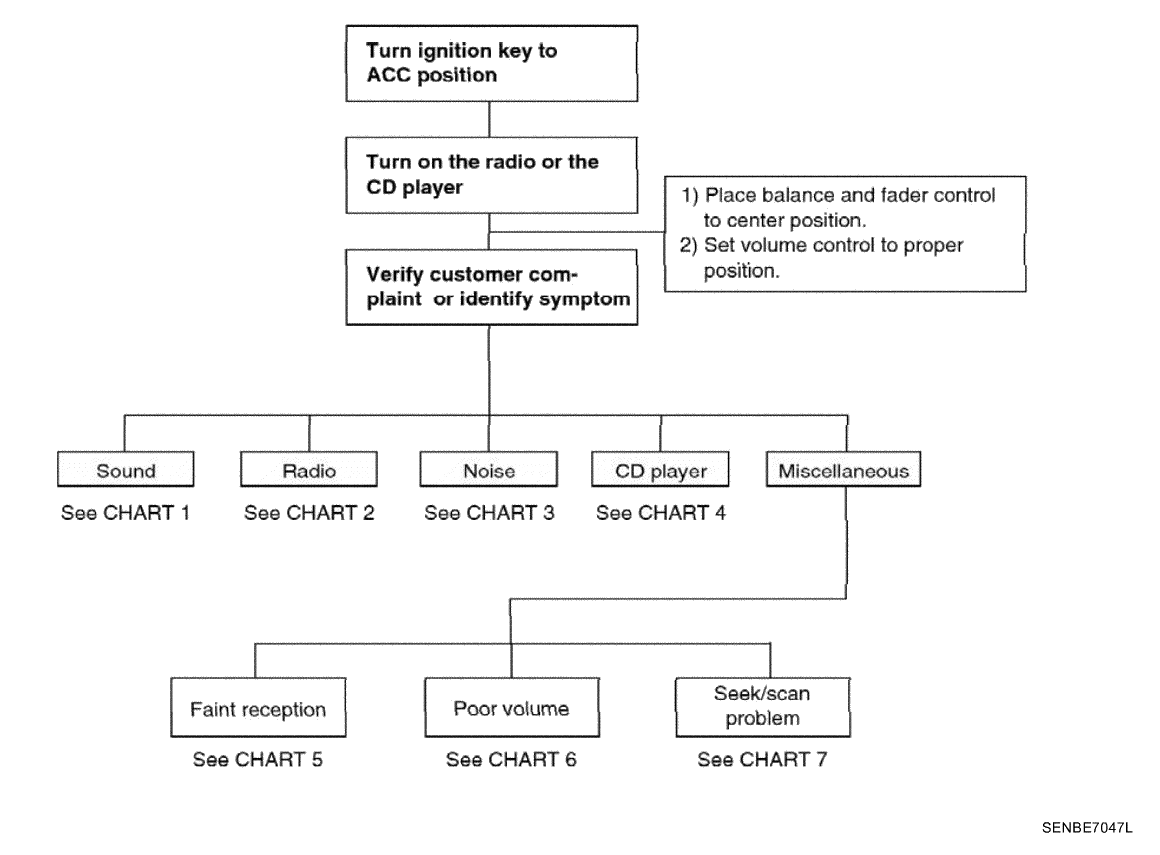

Fig 2: Troubleshooting Flow Chart
G00481183Courtesy of KIA MOTORS AMERICA, INC.
