Monitor Scan Tool Data

Check status
1. IGN "ON" & Engine "OFF"
2. Monitor the "ECM KEY and SMARTRA Status" Parameter on the Scan Tool.
  Specification: 'LEARNT'

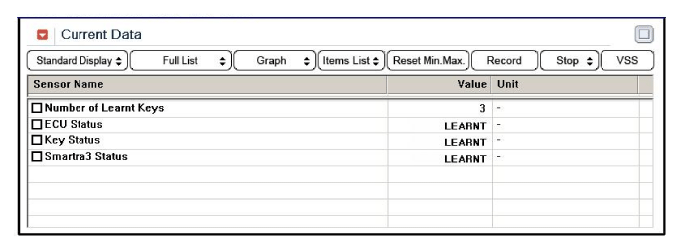

  Fig 1: Data Keys Have Been Taught, ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt And Smartra3 Has Been Learnt
  Courtesy of KIA MOTORS AMERICA, INC.
3. Has the key status been learnt?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA.
  And this DTC has not been erased in previous repair. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO
  - Go to "COMPONENT INSPECTION " Procedure.
