Monitor Scan Tool Data

Connect scan tool to Data Link Connector (DLC).
IGN "ON" & Engine "OFF"
Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scan Tool.
Specification: 'LEARNT'

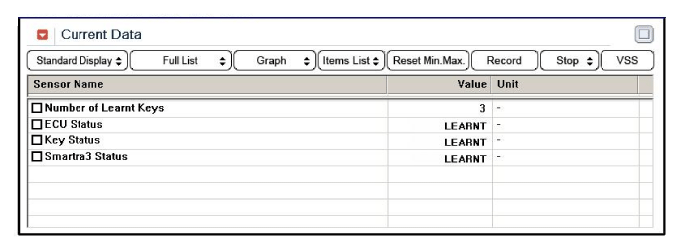

Fig 1: Data Keys Have Been Taught, ECU Has Been Learnt, Key In Key Cylinder Has Been Learnt And Smartra3 Has Been Learnt
Courtesy of KIA MOTORS AMERICA, INC.
Has the "SMARTRA" status been learnt?
YES
- Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then register transponder and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
