Front Hub/Knuckle: Components

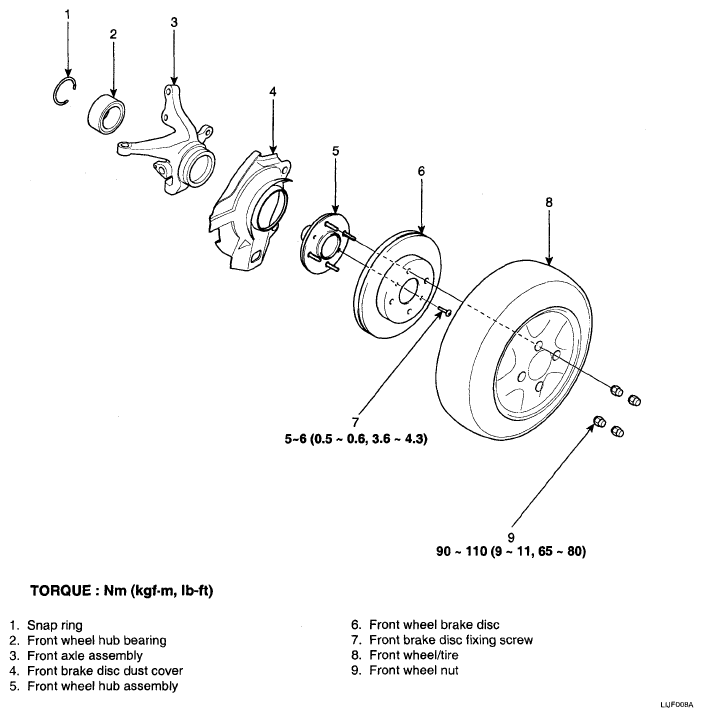

Fig 1: Front Hub/Knuckle Replacement Components With Torque Specifications
G04862748Courtesy of KIA MOTORS AMERICA, INC.
