Monitor Scan Tool Data

  1. Connect scan tool on the DLC ( Data Link Connector)
  2. Perform Action Test for Canister Vent Solenoid Valve with scan tool
  3. Check that clicking sound can be heard by actuation test.

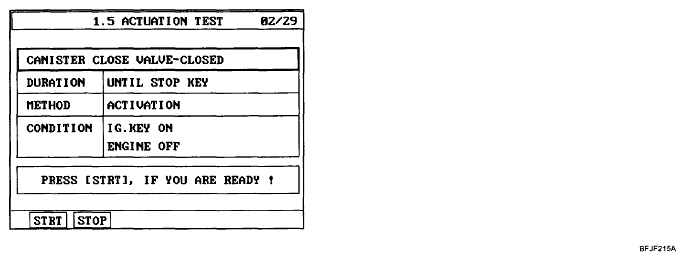

    Fig 1: Scan Tool Display - Actuation Test Parameter
    G04862246Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the CCV normal?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
