Component Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Remove "TRANSAXLE RANGE SWITCH".
Measure the resistance between each terminal of the transaxle range switch.
Specification: approx. 0 Ω

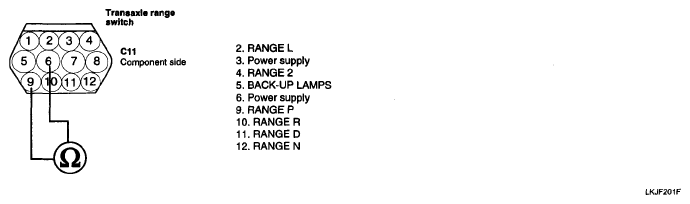

Fig 1: Measuring Resistance Between Terminal Of Transaxle Range Switch
Courtesy of KIA MOTORS AMERICA, INC.

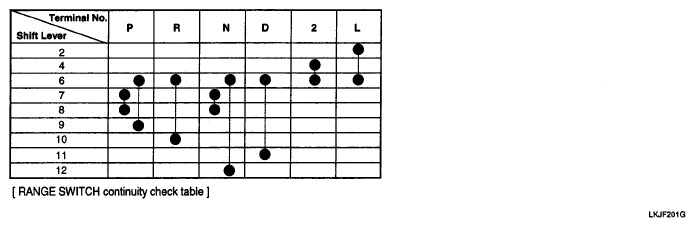

Fig 2: Transaxle Range Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
Is resistance within specifications?
YES : --> Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Replace "TRANSAXLE RANGE SWITCH" as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
