Power Supply Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect TRANSAXLE RANGE SWITCH" connector.
  2. Ignition "ON" & Engine "OFF".
  3. Measure voltage between each terminal of the sensor harness connector and chassis ground.

    Specification: Shown below

    CONNECTOR TERMINAL SPECIFICATIONS

    TERMINAL (C11) 2 3 4 5 6 7 8 9 10 11 12
    SPECIFICATION 0V 12V 0V 0V 12V 0V 0V 0V 0V 0V 0V

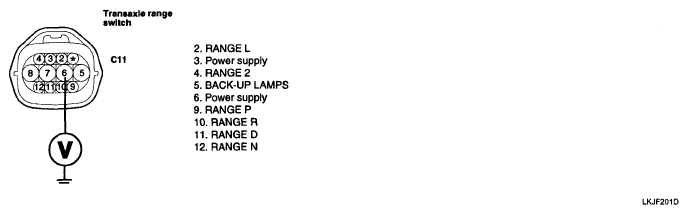

    Fig 1: Measuring Voltage Between Terminal Of Sensor Harness Connector
    G04862538Courtesy of KIA MOTORS AMERICA, INC.
  4. Is voltage within specifications?

    YES  : --> Go to "SIGNAL CIRCUIT INSPECTION " procedure.

    NO  : --> Check for short in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
