Power Steering Gear Box: Components

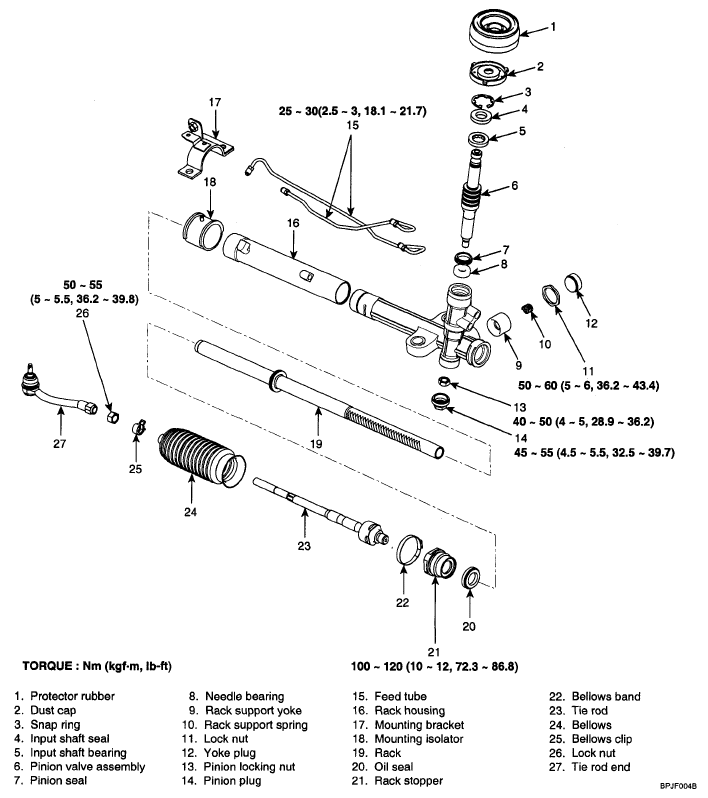

Fig 1: Exploded View Of Power Steering Gear Box With Torque Specifications
G04862920Courtesy of KIA MOTORS AMERICA, INC.
