Manual Transaxle Control System (From 11.19.2008)
>>
Shift Liver
>>
Components And Components Location
>>
Components (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components (1)

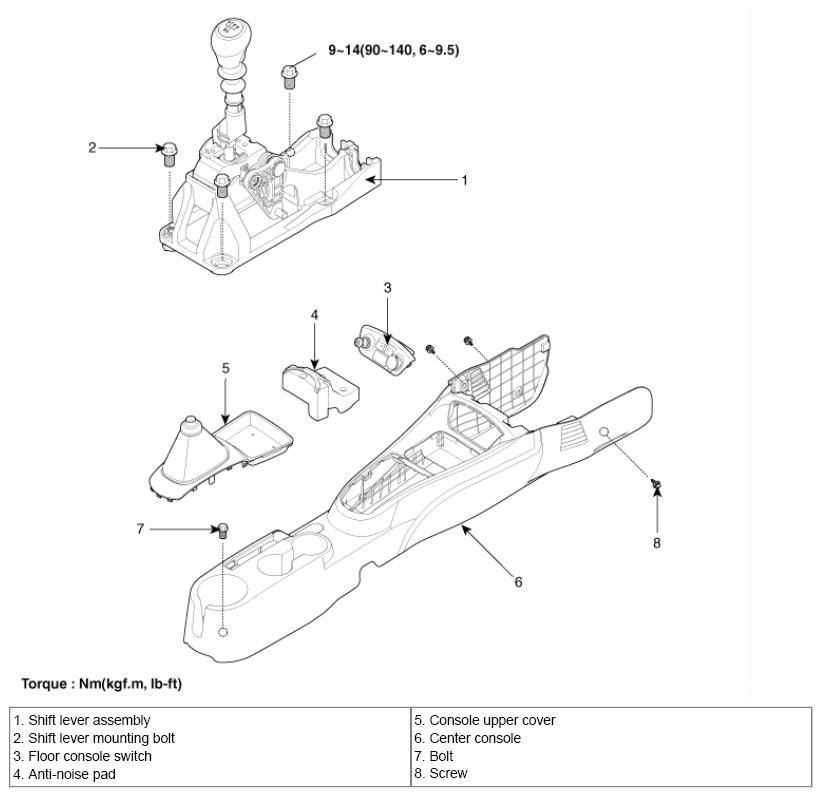

Fig 1: Exploded View Of Shift Liver (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
