Oxygen Sensor
SPECIFICATIONS
INPUT SENSORS
HEATED OXYGEN SENSOR (HO2S)
- Type: Zirconia (ZrO2) Type

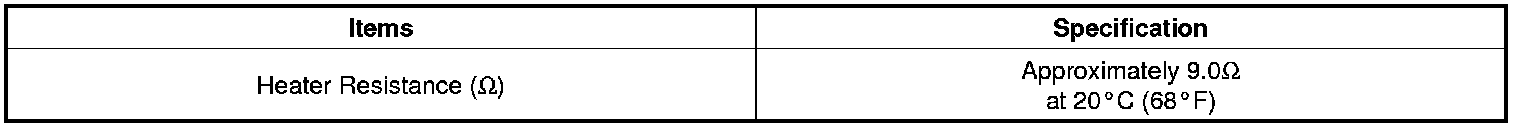

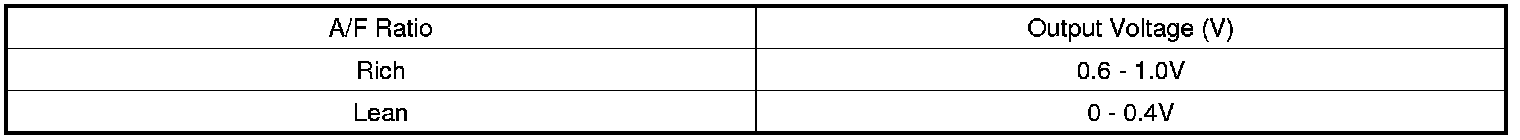

- Specification
