System Specifications





SPECIFICATIONS

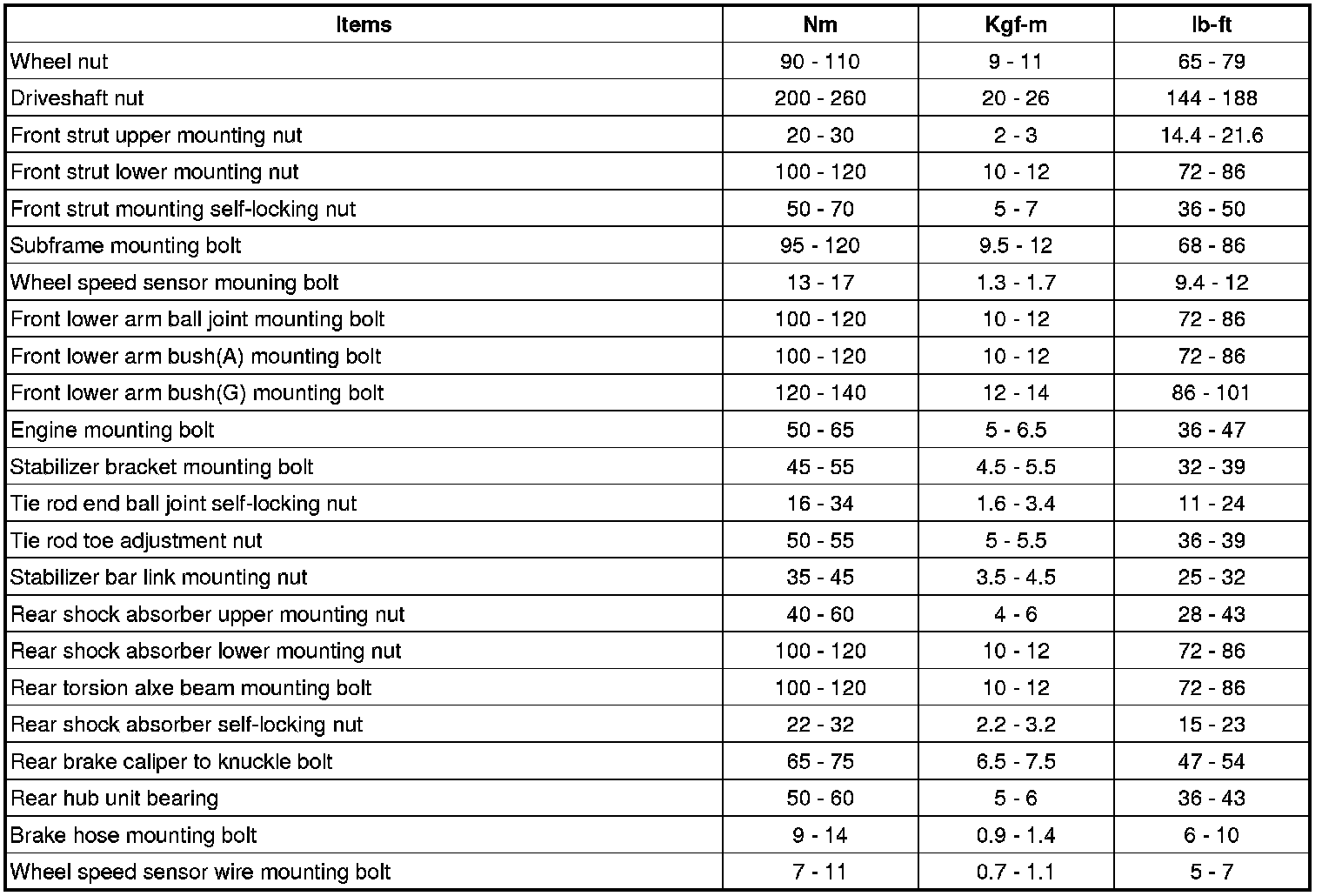

TIGHTENING TORQUE





CAUTION:
Replace the self-locking nuts with new ones after removal.
