Evaporator Temperature Sensor / Switch: Service and Repair

REPLACEMENT

1. Remove the crash pad. .
2. Remove the cowl cross bar. .

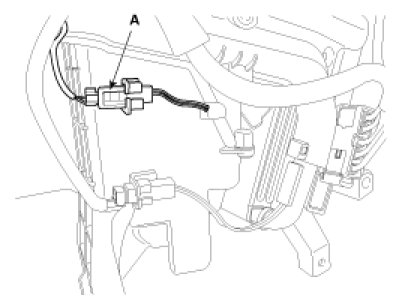

3. Disconnect evaporator sensor connector (A).

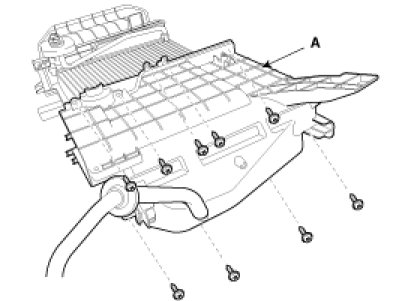

4. Remove the heater unit cover(A).

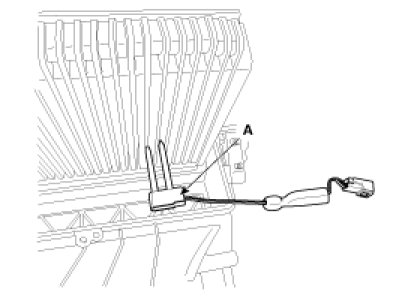

5. Remove the evaporator sensor(A).




6. Installation is the reverse order of removal.
