Wiper Switch: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after loosening 3 screws.

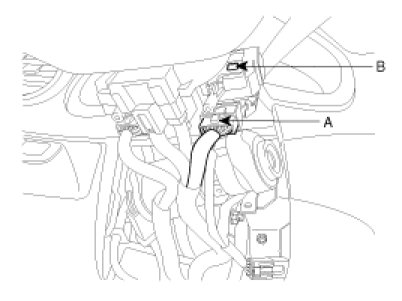

3. Remove the wiper switch (A) after disconnecting the connector with pushing the lock pin (B) and loosening 2 screws.






INSTALLATION

1. Install the windshield wiper switch.
2. Connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.
