DTC B1952: OSRVM Defogger Error
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

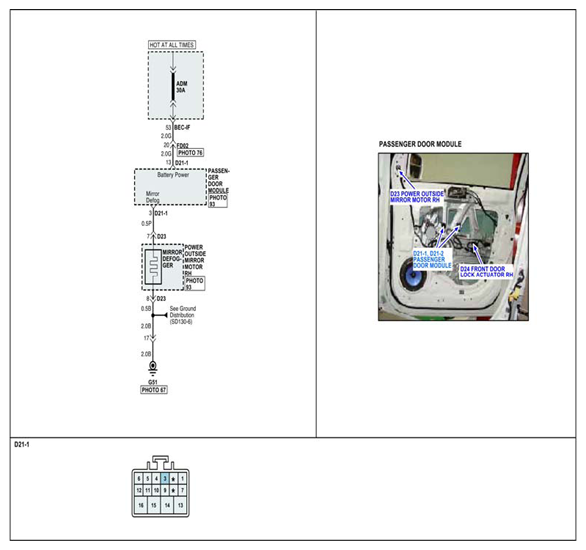

Fig 1: OSRVM Defogger Error - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
