Audio System: Troubleshooting: Notes

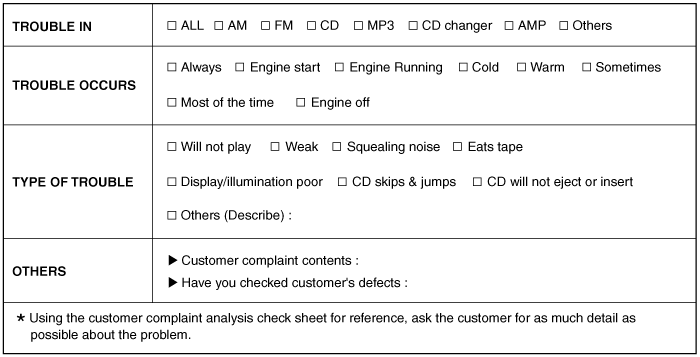

Fig 1: Customer Complaint Analysis Check Sheet
G00485642Courtesy of KIA MOTORS AMERICA, INC.

There are 5 areas where a problem can occur: wiring harness, the radio, the CD player, antenna and speaker. Troubleshooting enables you to confine the problem to a particular area.

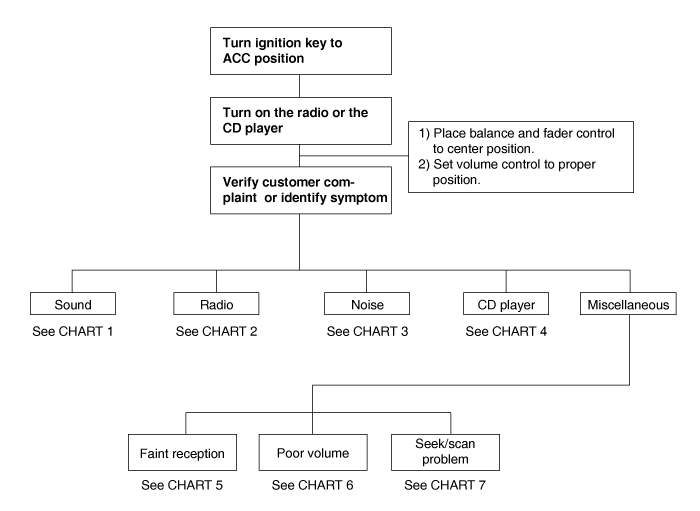

Fig 2: Troubleshooting Flow Chart
G00485643Courtesy of KIA MOTORS AMERICA, INC.
