Lower Panel Replacement

  1. Remove the crash pad side cover. See COVER REPLACEMENT .
  2. Remove the fuse box cover (A).

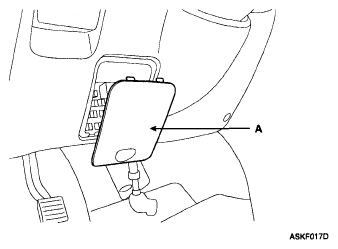

    Fig 1: Identifying Fuse Box Cover
    G04884076Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (B).
  4. Remove the parking brake lever (C).
    Fig 2: Identifying Lower Panel, Parking Brake Lever And Fastener Locations
    G04884077Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the connector (A).

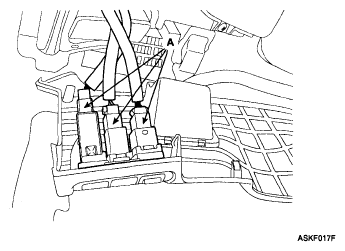

    Fig 3: Identifying Connector
    G04884078Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
