Rear Heater Control Unit Replacement

  1. Remove the rear heater control unit (A).
  2. Disconnect the connector (B).

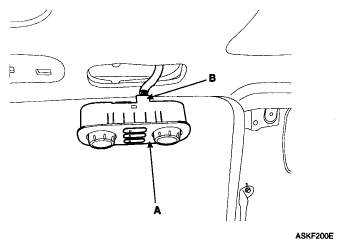

    Fig 1: Identifying Rear Heater Control Unit And Connector
    G04884106Courtesy of KIA MOTORS AMERICA, INC.
