Monitor Scan Tool Data

Connect scan tool to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Turn the steering wheel to the left or right.
Monitor the "steering sensor" parameters on the scan tool.

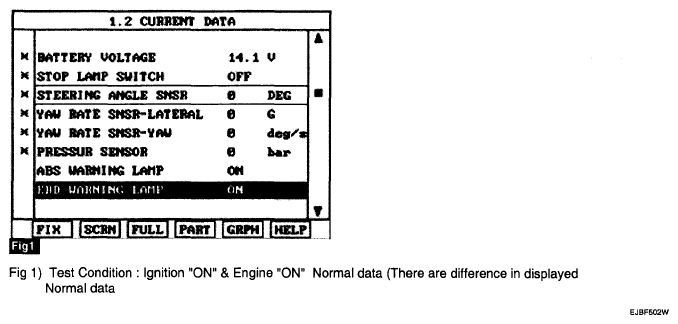

Fig 1: Scan Tool Display - EBD Warning Lamp
Courtesy of KIA MOTORS AMERICA, INC.
Whenever steering wheel is turned, is the steering sensor's scan tool data changed?
YES
- Fault is intermittent caused by poor connection in steering sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
